Power Apps Excel-Style Editable Table – Part 1

Power Apps Excel-Style Editable Table – Part 1



Excel is the most popular business app in the entire world. Everyone who works in an office understands what the app is and knows the basics of how to use it. Including an editable table that is designed similar to an Excel spreadsheet is an excellent addition to many Power Apps. It provides users an efficient way of doing data entry and makes them feel comfortable with a concept they already know. Unfortunately, Power Apps does not have this feature built-in.

In this two-part series I will show you how to build an Excel-style editable table in PowerApps. Part 1 will show you how to setup the table, edit values and save changes back to a datasource. Part 2 will focus on how to add new records and delete existing records.



Inventory Count App

The Inventory Count App is used by employees of a home improvement store to record the actual amount of each product the business owns. An employee clicks on the New button to record information about several items into a table and clicks Save once finished. If a correction is needed the item can edited or deleted from the table.



Create a new SharePoint list called ‘Inventory Count’ with 4 columns: ItemNumber (text), Description (text), Quantity (number) and Location (text).

ItemNumberDescriptionQuantityLocation
ELEC-1000Light Switch25Storefront
ELEC-1001Circuit Breaker 20 Amp17Storefront
PLUM-1002Copper Pipe 10-1/420Storefront
PLUM-1023Kitchen Faucet Silver5Storefront
LUMB-2001Plywood 8×443Lumber Yard
LUMB-2094Fence Post 8ft100Lumber Yard

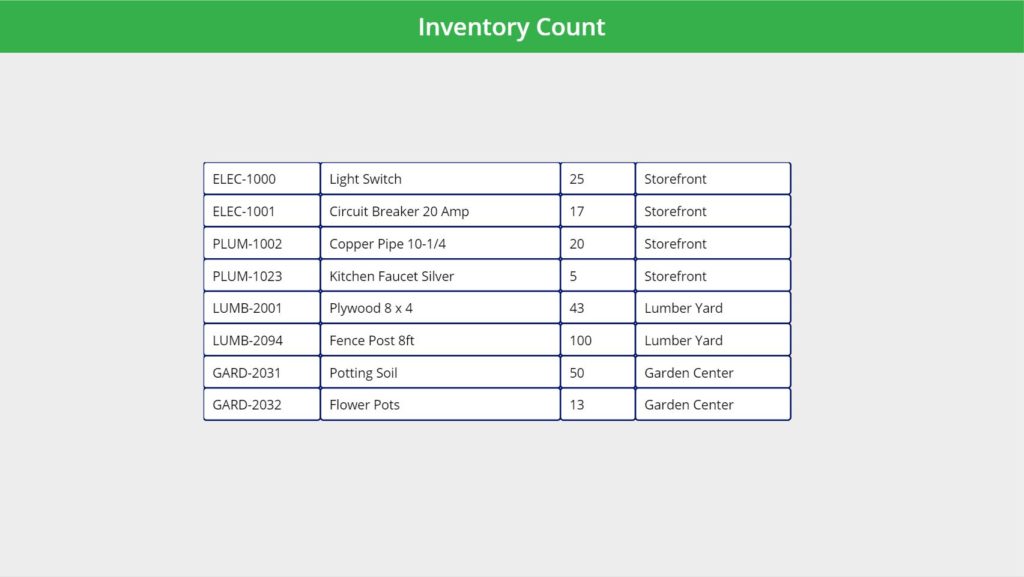

Open Power Apps and create a new Canvas App From Blank called Inventory Count App. Insert a gallery called gal_EditableTable onto the canvas with the ‘Inventory Count’ SharePoint List as the datasource.

Then place 4 text input controls inside the gallery named txt_ItemNumber, txt_Description, txt_Quantity and txt_Location and use this code in each of their Default properties respectively: ThisItem.ItemNumber, ThisItem.Description, ThisItem.Quantity, ThisItem.Location. The app will now look like the image shown below.



Now we will work on styling the gallery to make it appear like an editable table. Change gal_EditableTable to have these properties

TemplatePadding: 0
TemplateSize: 40



Then change txt_ItemNumber, txt_Description, txt_Quantity and txt_Location to reflect these properties.

BorderColor: DarkGray
BorderThickness: 1
Color: Black
Fill: White
FocusedBorderColor: Self.BorderColor
FocusedBorderThickness: Self.BorderThickness
HoverBorderColor: Self.BorderColor
HoverColor: Self.Color
HoverFill: RGBA(186, 202, 226, 1)
PressedBorderColor: Self.BorderColor
PressedColor: Self.Color
PressedFill: Self.Fill
RadiusBottomLeft: 0
RadiusBottomRight: 0
RadiusTopLeft: 0
RadiusTopRight: 0

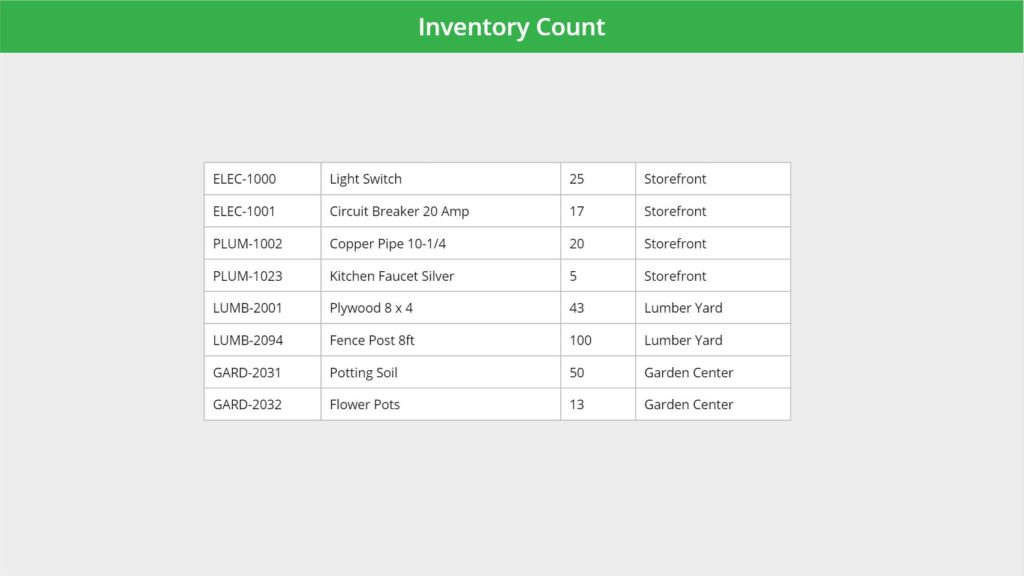

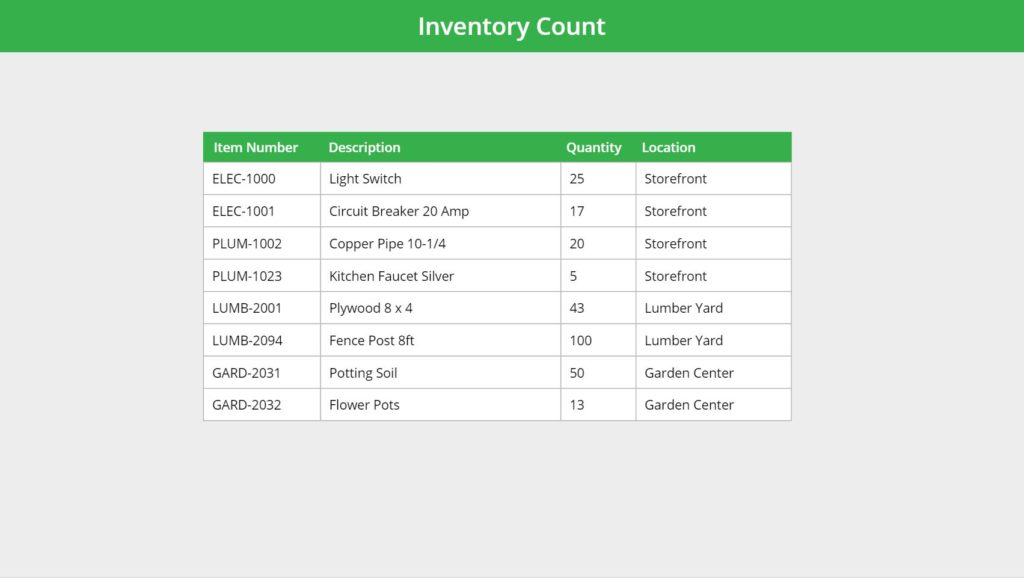

Once the style changes are completed the gallery now looks like an editable table.

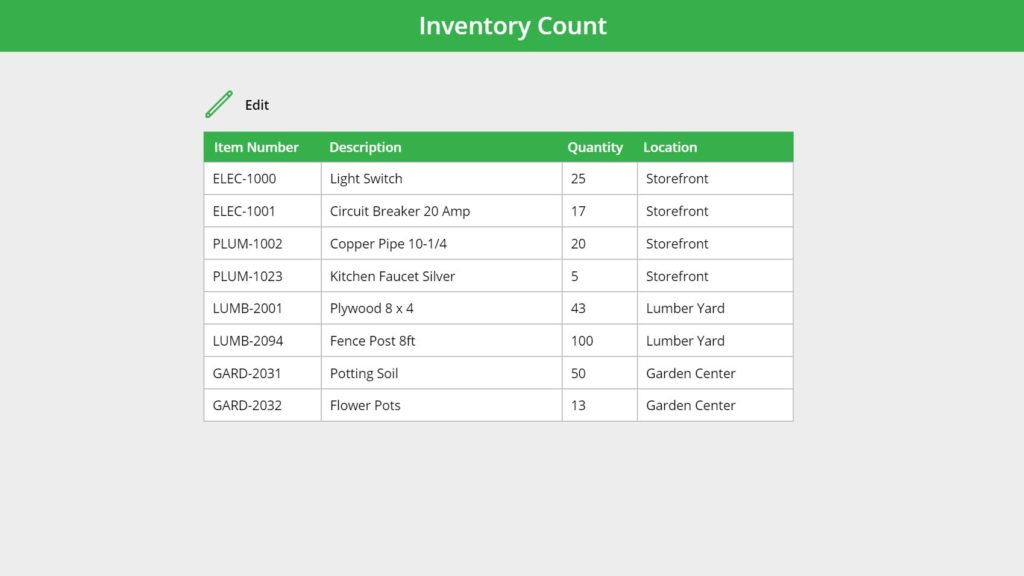

As a final touch we will add a label above the gallery with the column header names. Set the label’s Fill property to a color that matches your app’s theme and make the FontWeight bold. Our gallery now looks like an Excel spreadsheet.



Detecting Edited Rows

Employees require the ability to edit values in the table and save them back to the SharePoint list. To ensure the best app-performance possible we only want to update records that were changed. We will track this by inserting a toggle called tog_isChanged on the right-side of the gallery.



Put this code in the Default property of the toggle to control its behaviour.

ThisItem.ItemNumber<>txt_ItemNumber.Text
Or ThisItem.Description<>txt_Description.Text
Or ThisItem.Quantity<>Value(txt_Quantity.Text)
Or ThisItem.Location<>txt_Location.Text

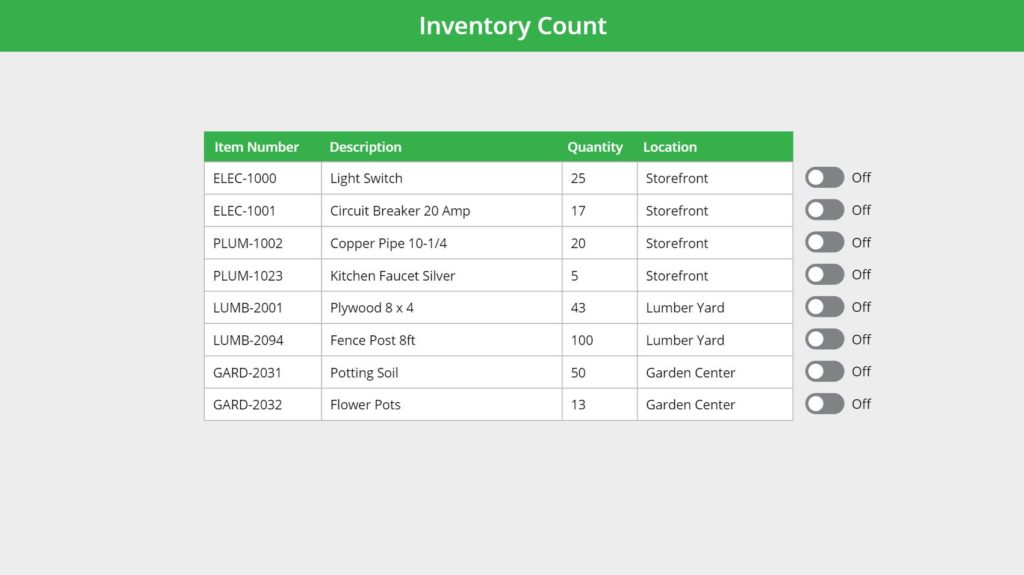

Try changing a few values in the table to understand how the toggle works. When the toggle is in the ‘On’ position it means the row was modified. The ‘Off’ position tells us that the row remains unedited.



Once we are satisfied the toggle is working correctly we can hide it by changing the Visible property to False. The employee does not need to see the toggle.



Editing The Table and Saving Changes

Initially, the table should be in a view-only state. The employee will click the Edit button to make the gallery editable. Place an ‘Edit’ icon and a label with the word “Edit” above the gallery.




Put this code in the following properties of both ico_Edit and lbl_Edit

OnSelect: Set(varGalleryMode, "Edit")
Visible: varGalleryMode=Blank()



Then use this code in the DisplayMode property of the Text Input controls: txt_ItemNumber, txt_Description, txt_Quantity and txt_Location.

If(varGalleryMode="Edit", DisplayMode.Edit,DisplayMode.View)


Now when we click on the Edit button the gallery changes from “View” mode to “Edit” mode.

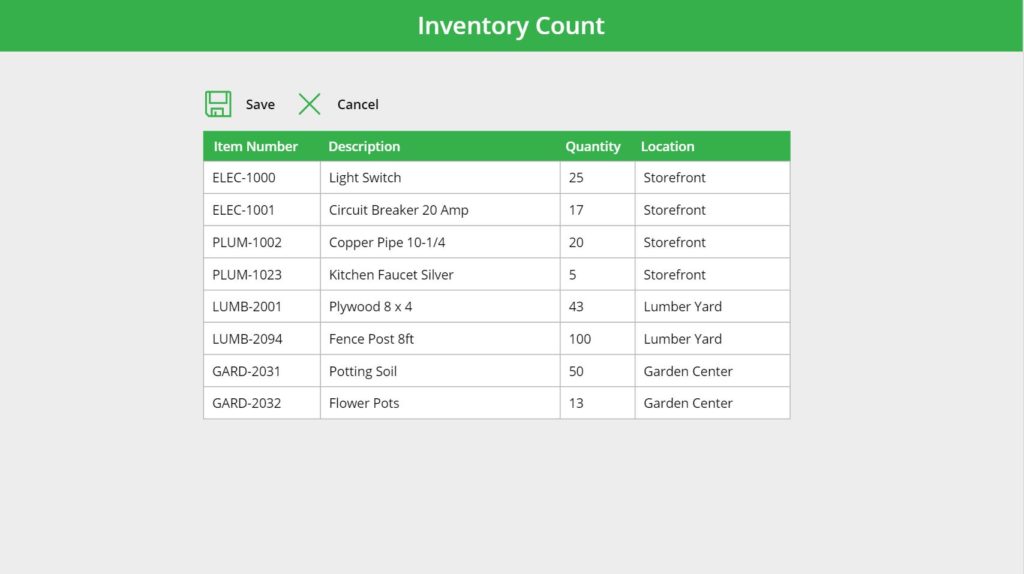

Next we’ll add 2 more pairs of icon and labels for “Save” and “Cancel”.



They should only appear when the gallery is in “Edit” mode. Put this code in the Visible property of the icons and labels.

varGalleryMode = "Edit"



When the employee clicks “Save” any changes made should be written back to the SharePoint List. We will create a collection called colUpdates to store the modified records. The first step is to define the collection schema by placing this code in the OnStart property of the app.

ClearCollect(colUpdates,{
    ID: 1,
    ItemNumber: "A",
    Description:"A",
    Quantity: 1,
    Location:"A"
});
Clear(colUpdates);



Then insert this code into the OnSelect property of the Save icon and its associated label. It will loop through the gallery looking for any changed records, store them in the colUpdates collection and then patch multiple rows to SharePoint simultaneously to achieve the best performance.

// Create a collection to store updated values
ForAll(
    Filter(
        gal_EditableTable.AllItems,
        tog_isChanged.Value
    ) As ChangedRows,
    Patch(colUpdates,
    Defaults(colUpdates), {
        ID: ChangedRows.ID,
        ItemNumber: ChangedRows.txt_ItemNumber.Text,
        Description: ChangedRows.txt_Description.Text,
        Quantity: Value(ChangedRows.txt_Quantity.Text),
        Location: ChangedRows.txt_Location.Text
    })
);

// Update SharePoint with new values
Patch('Inventory Count', colUpdates);
Clear(colUpdates);

// Return gallery to view mode
Set(varGalleryMode, Blank());



Once the SharePoint list is updated the gallery returns to “View Only” mode.



Cancelling Changes


Finally, we want to allow employees to return to “View” mode without saving any of the changes they made. Put this code in the OnSelect property of the cancel icon and label.

// Reset text inputs to erase any edits made
Set(varResetTextInputs, true); Set(varResetTextInputs, false);

// Clear any changes from colUpdates
Clear(colUpdates);

// Return gallery to view mode
Set(varGalleryMode, Blank());


Then write this code in the Reset property of txt_ItemNumber, txt_Description, txt_Quantity and txt_Location.

varResetTextInputs



When the cancel icon is clicked all records are reset and show their original values.



Want To Read Part 2 Of This Series?

My next article will show you how to add new records and delete existing records using an editable table. Click here to read Power Apps Excel-Style Editable Table – Part 2.






Questions?

If you have any questions or feedback about Power Apps Excel-Style Editable Table – Part 1 please leave a message in the comments section below. You can post using your email address and are not required to create an account to join the discussion.

Matthew Devaney

Subscribe
Notify of
guest

39 Comments
Oldest
Newest
Inline Feedbacks
View all comments
Sokratis
Sokratis
4 years ago

Great job!!!
Thank you!!!
Looking forward for part 2

Last edited 4 years ago by Sokratis
Damian
Damian
4 years ago

Works very well! Thank you!

Gustavo
Gustavo
4 years ago

Thank you Matthew, great tips. Looking forward to Part 2

F.G
F.G
4 years ago

HI MD
Patch(SP_Labour, col_LabourSheetUpdates); – says invalid argument type (Table) Expecting a Record value instead. What I am in missing please
Clear(col_LabourSheetUpdates);

Jason
Jason
4 years ago

Hi Matt,
What would the ‘collection schema’ look like for a people picker field in sharepoint? Is different to the above?

Jason
Jason
4 years ago

Thanks very much!

David Bartel
David Bartel
2 years ago

I have the same error msg. I have run the app onstart and verified that the blank collection exists. The error in the formula says that patch is expecting a record as the second parameter. I am authoring in powerapps for teams in case that makes a difference. Thanks for your assistance

Liviu Bocsanu
Liviu Bocsanu
9 months ago

Hello Mathew,
I have same error and I did the following:

  • verified that App.OnStart is “On”
  • I replicated everything, including your List, terminology, etc. (all of it)

It’s been 2 days and I am still looking at the error … please help of you can?

Kasper
Kasper
3 years ago

Hi Matthew!

Thanks a lot for the amazing guide! I am however having problems with patching changes correctly back to my SharePoint list, which is an existing list with a lot of columns already.
Problem is, when I save changes to an item, instead of applying the changes to the existing item, the function just creates a new item with those changes I made.

My code looks like this:

OnStart:

Refresh(‘Risikostyring-register’);; ClearCollect(colUpdates; ‘Risikostyring-register’) ;; Clear(colUpdates) ;;

The OnSelect-function on my save-icon looks like this:

ForAll(
   Filter(
       Gal_EditableTable.AllItems;
       tog_isChanged.Value
   ) As ChangedRows;
   Patch(
       colUpdates;
       Defaults(colUpdates);
       {
           Kategori: ChangedRows.TextInput1_15;
           Risikobeskrivelse: ChangedRows.TextInput1_16.Text;
           ‘Deadline for handling’: ChangedRows.DatePicker1_2.SelectedDate
       }
   )
);;
Patch(
   ‘Risikostyring-register’;
   colUpdates
);;
Clear(colUpdates);;
Set(
   VarGalleryMode;
   Blank()
);;

Can you from this see where I am doing something wrong?

Best regards,
Kasper

Kasper
Kasper
3 years ago
Reply to  Kasper

I think I might have found the issue finally. I guess I was missing the line “ID: ChangedRows.ID;”. Seems like that one is pretty important to include! ?
Thanks again for the guide!
/Kasper

Shreyansh Singh
Shreyansh Singh
3 years ago

Hi Matthew,
Thanks for the amazing description, and I am using this video to build an application. The only difference is I have many more columns than this and it gets a horizontal scroll. Can you suggest a way to achieve this. I am using containers for horizontal scrolls but not able to find controls that are in scrollable part of gallery.

Thanks in advance,
Shreyansh

Kevin Clarke
Kevin Clarke
3 years ago

Thanks Matthew! I’ve been struggling with this very thing since I started my Power App journey and this write up was the exact thing I needed. I have built this to the letter, but I have 2 date picker’s and 1 choice field and I’ve yet been able to figure out the collection schema and patch syntax. Hope you can help! PS. I’m a fellow Winnipeger!

Last edited 3 years ago by Kevin Clarke
Aaron
Aaron
3 years ago

Hey Matthew,
Really appreciate these blogs that I have subscribed to and I am learning a lot from each of them. I received this “excel style” design from the business and have been following this through. I am having trouble with the Patch as 2 of my fields are choice fields.

I raised a post on the community before seeing this comments section so I will post the link instead of re-typing if you dont mind?

https://powerusers.microsoft.com/t5/Building-Power-Apps/Patch-Choice-Values-to-Collection-and-SharePoint/m-p/879022#M279096

Thanks!

Kate
Kate
3 years ago

Hi Matthew, thanks so much for creating this post. I’ve been looking for this everywhere!!!?

I’m having trouble patching a lookupfield. I have a main SP list called “Simulation Status”. It has some text fields, choice fields, and lookup field from a second SP list called “Simulation list”.

I have declared my collection in the OnStart of the app like so:

ClearCollect(colUpdates,{
  ID: 1,
  Notes: "A",
  Simulation: {'@odata.type':"#Microsoft.Azure.Connectors.SharePoint.SPListExpandedReference",
         Id: 1,
         SimName: "A"}
});
Clear(colUpdates);

For patching in the save button I have the following code:

// Create a collection to store updated values
ForAll(
  Filter(
    gal_EditableTable.AllIems,
    tog_IsChanged.Value
  ) As ChangedRows,
  Patch(colUpdates,
  Defaults(colUpdates), {
    ID: ChangedRows.ID,
    Notes: ChangedRows.txt_Notes.Text,
    Simulation: {'@odata.type':"#Microsoft.Azure.Connectors.SharePoint.SPListExpandedReference",
         Id: 1,
         SimName: ChangedRows.drp_Simulation.Selected.SimName}
  })
);

// Update SharePoint with new values
Patch('Simulations Status', colUpdates);
Clear(colUpdates);

// Return gallery to view mode
Set(varGalleryMode, Blank());

The “Patch(‘Simulations Status’, colUpdates);” gives me an error Invalid argument type “TABLE”. Expecting a RECORD value instead.

It kind of looks like the same issue as F.G. user, but I don’t know how else to proceed. Any insight would be appreciated.

Thanks

KA

Eduardo
Eduardo
2 years ago

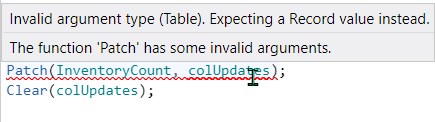

Awesome post, I just have one issue, in the Patch function it shows me the next error
