Power Automate Desktop: Read & Filter Excel With SQL Query

Power Automate Desktop: Read & Filter Excel With SQL Query

In Power Automate Desktop there are two ways to read an Excel file. The traditional way is to use built-in Excel actions extract all of the spreadsheet’s data. A better way is to create a SQL connection to the Excel file and use SQL queries to get the data we need. SQL queries are twice as fast at reading data from an Excel file and we can write them to filter the data and only return a subset of what we need.

In this article I will show you how to get data from an Excel file using both methods and how to filter Excel data with a SQL query.

Table Of Contents:
• Introduction: The Employees List Excel File
Create An Employees List Excel File
Read Excel File Data Using A SQL Connection
Read Excel File Data Using Excel Actions
Testing The Speed of SQL Connection vs. Excel Actions To Read An Excel File
Selecting Specific Excel File Rows With SQL Statements
Filter An Excel File Where A Column Is Equals A Specific Value
Filter An Excel File For Values Greater Than A Specific Number
Filter An Excel File For Values Between Two Dates
Filter An Excel File To Return Top Rows




Introduction: The Employees List Excel File

The human resources department of a financial services firm has a list of employees and other important details stored in an Excel spreadsheet. They want to use Power Automate Desktop to extract information from the Excel file and input it into their payroll system.




Create An Employees List Excel File

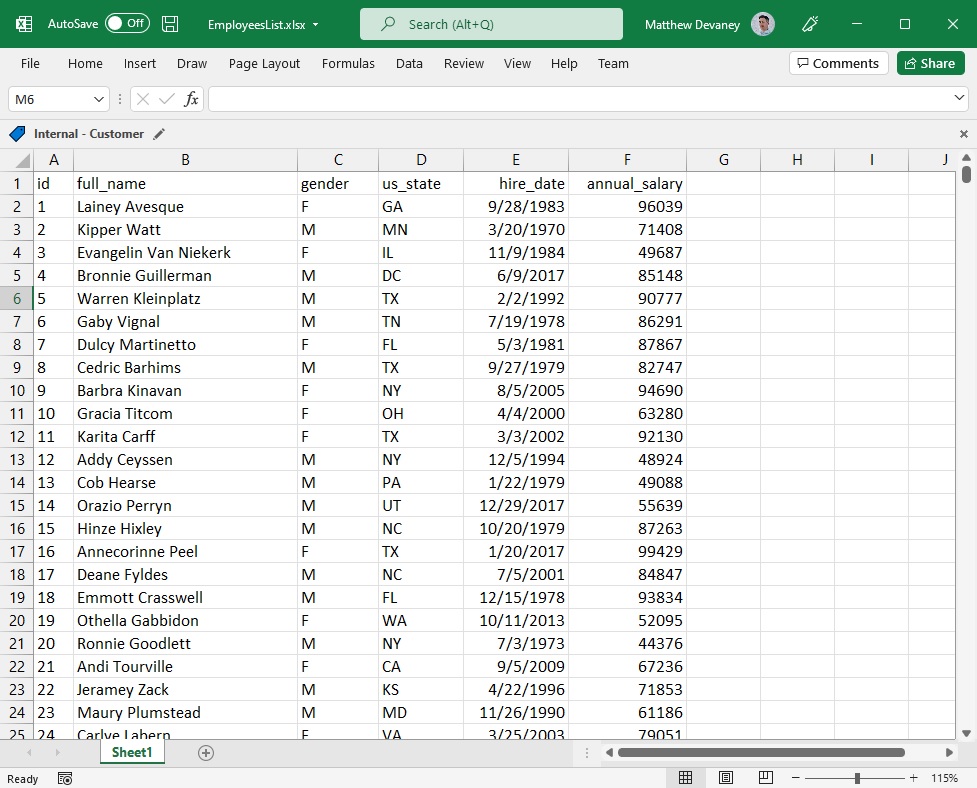

For this tutorial we need an Excel spreadsheet with employee information. Open Excel and type in some sample data as shown in the screenshot above. When saving the spreadsheet make a note of the filename and folder path where it is stored. The path to my spreadsheet is:

C:\RPA\ReadExcelUsingSQL\EmployeesList.xlsx




I have provided a copy of the Excel spreadsheet I used in my Github repository.





Read Excel File Data Using A SQL Connection

There are two ways to open an Excel file in Power Automate Desktop. First we will open the Excel file and read its data using a SQL connection. Then we will open it the traditional way using Excel actions and read the data. After trying both methods we will compare them to one another.

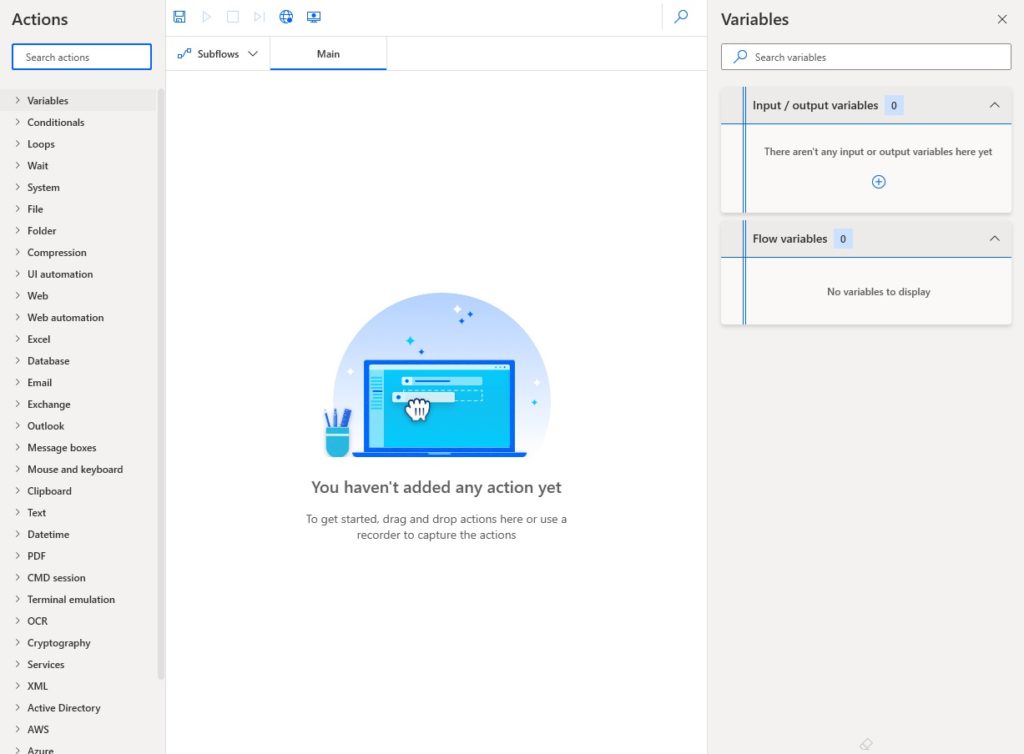

Open Power Automate Desktop and create a new desktop flow.

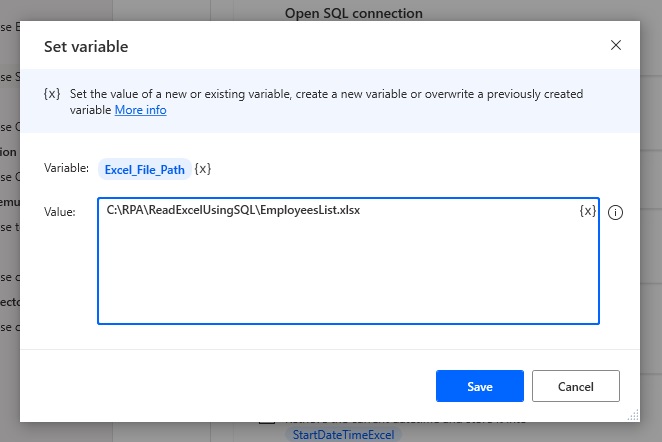

Set a variable with a path to the Employees List Excel file we created earlier.



Then insert an Open SQL Connection action.

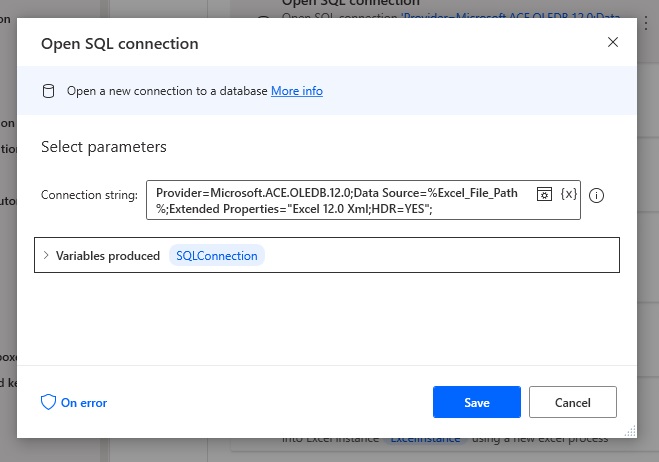

Then write this code in the connection string field. A connection string specifies information about a datasource and tells Power Automate how to connect to it. Notice that the Source parameter includes a reference to Excel_File_Path variable.

Provider=Microsoft.ACE.OLEDB.12.0;Data Source=%Excel_File_Path%;Extended Properties="Excel 12.0 Xml;HDR=YES";

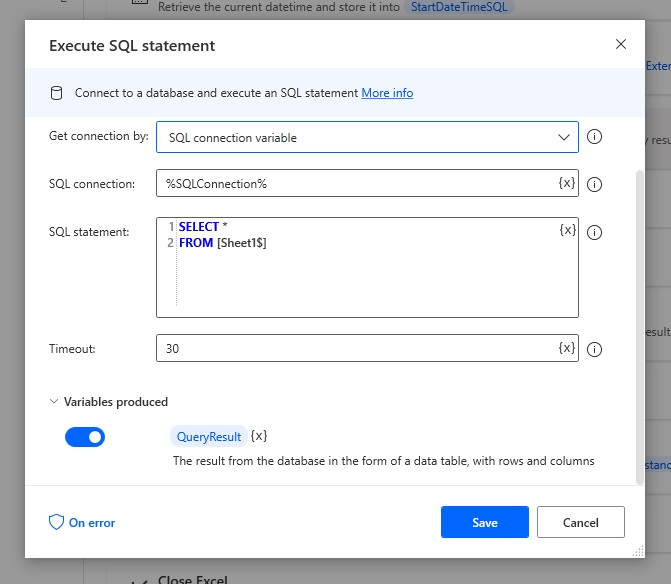

Now we will write a SQL query to extract data from the Excel spreadsheet. Create an Execute SQL statement step as shown below.


Then write this code in the SQL statement field. This query says to get all of the columns in from the spreadsheet named Sheet1.

SELECT *
FROM [Sheet1$]

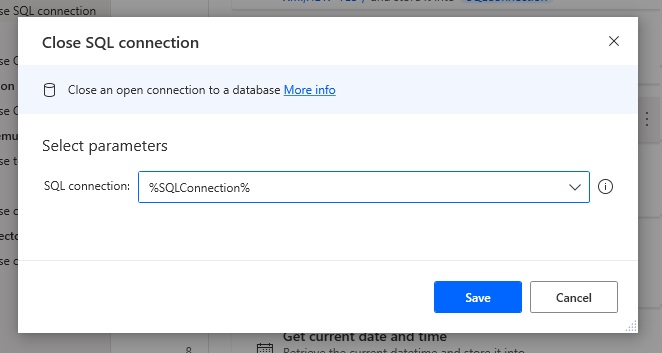

We must add one more action to close the SQL connection once the query is completed.

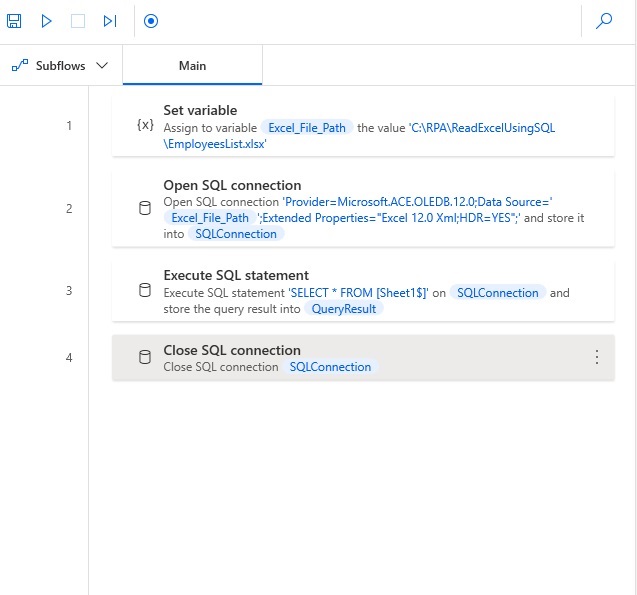

The full set of actions to open the Excel file with a SQL connection should look like this.

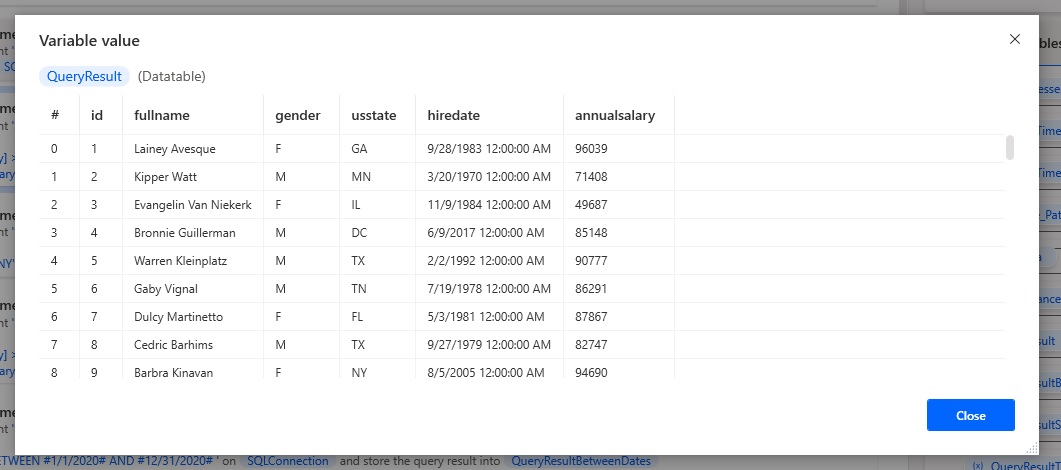

When we run the desktop flow it returns a variable called QueryResult with the full contents of the Excel spreadsheet.




Read Excel File Data Using Excel Actions

The normal way to read an Excel file is by using the Excel actions in Power Automate Desktop. Let’s give this method a try so we can see compare it the SQL connection option.

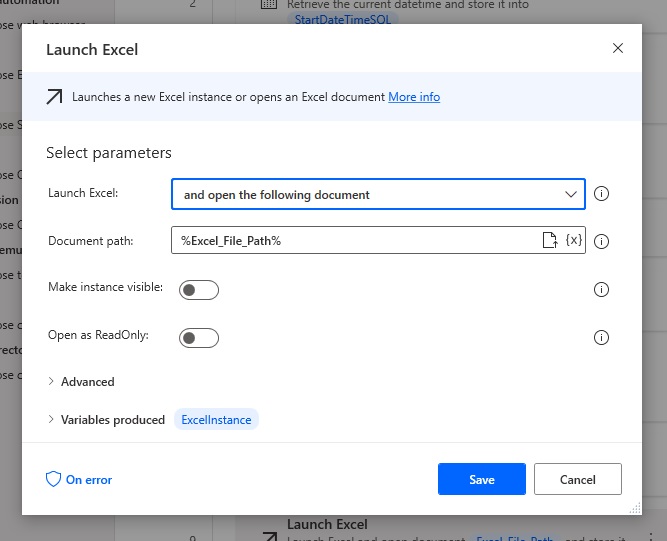

Insert a new Launch Excel desktop flow action.



Choose to launch Excel and open the following document at the document path stored in our variable.

%Excel_File_Path%

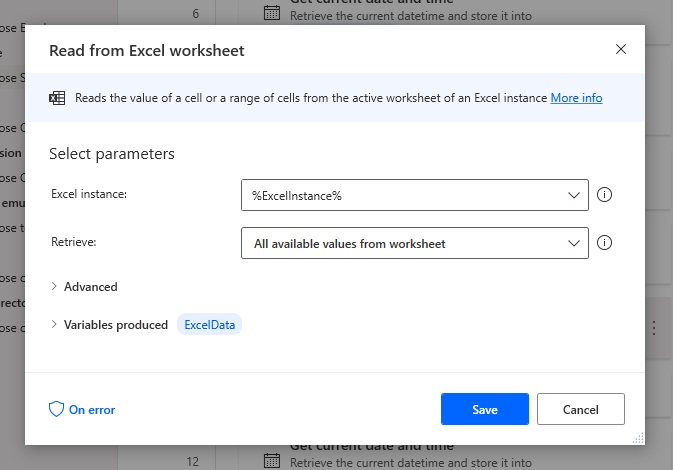

Then add a Read from Excel worksheet action. Use the Excel instance created by the Launch Excel action and retrieve all available values from the worksheet.

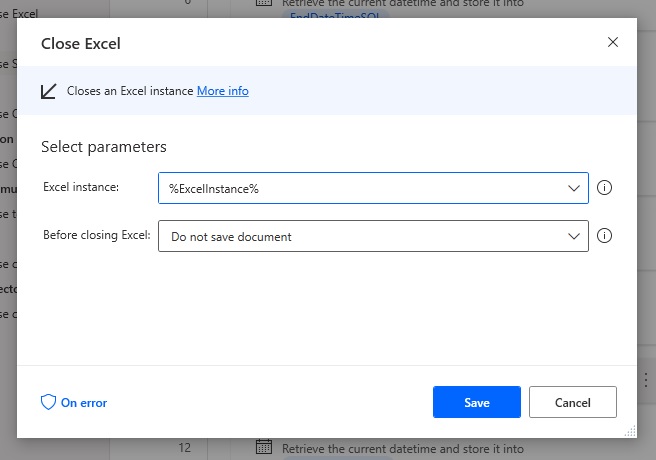

Finally, close the Excel file.

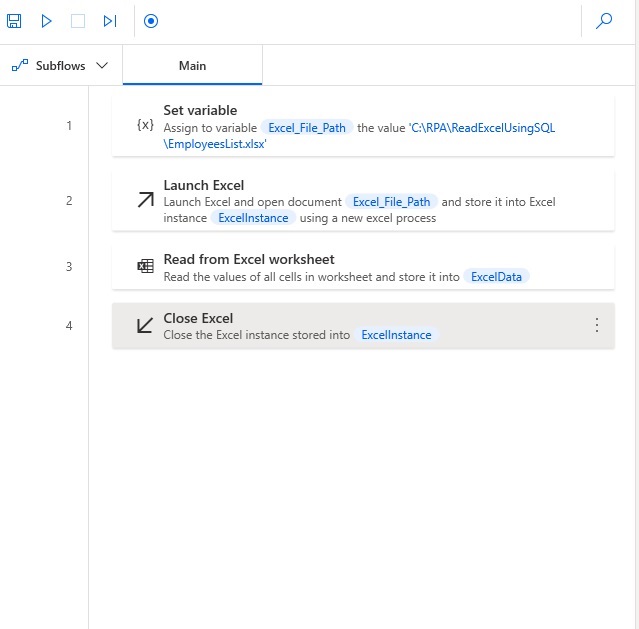

The completed desktop flow should look like this.



Run the flow and then look at the QueryResult variable. It contains exactly the same values.




Testing The Speed of SQL Connection vs. Excel Actions To Read An Excel File

Both methods of reading an Excel file return the exact same values. So why is it better to use a SQL Connection as opposed the Excel actions. One advantage is speed. A SQL Connection can read data from an Excel file twice as fast.

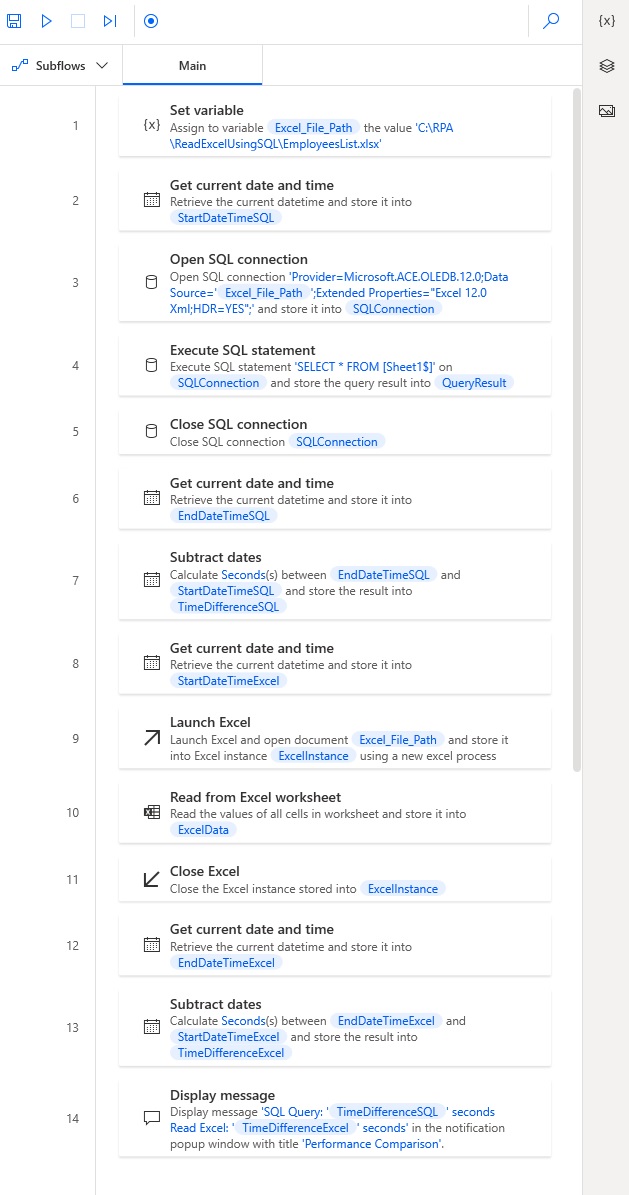

The following desktop flow performs both options and uses the get current date and time action to track when they started and ended. The subtract dates action determines how many seconds are between the start and end times and then the result is displayed in a message box.

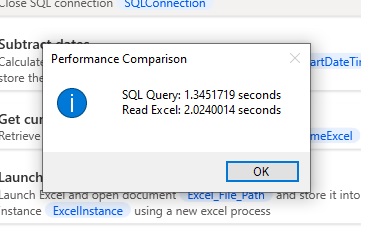

When we run the desktop flow we can see the SQL connection is twice as faster at reading an Excel file as the traditional Excel actions.




Selecting Specific Excel File Rows With SQL Statements

An even greater advantage of using a SQL connection to read data from an Excel file is we can use SQL statements to obtain a filtered set of rows. If you want to learn how to write SQL queries I suggest using the awesome SQL reference guide on the W3 Schools website. I’ll also give a few examples to get us started.




Filter An Excel File Where A Column Is Equals A Specific Value

Suppose we wanted to only wanted to extract the employees who live in the US state of New York (abbreviation: NY).

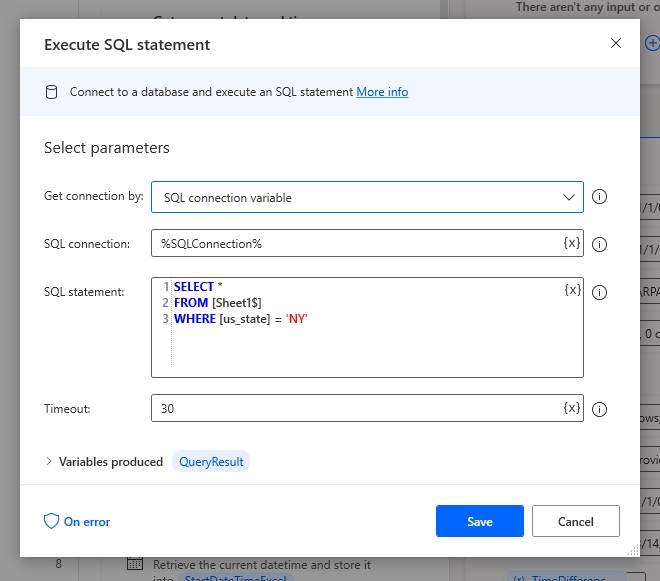

Write this query in the SQL statement field. Notice that we’ve added a WHERE clause to our SQL statement. The WHERE clause allows us to test each row for a specified condition. In this example the us_state column must equal the text NY.

SELECT *
FROM [Sheet1$]
WHERE [us_state] = 'NY'

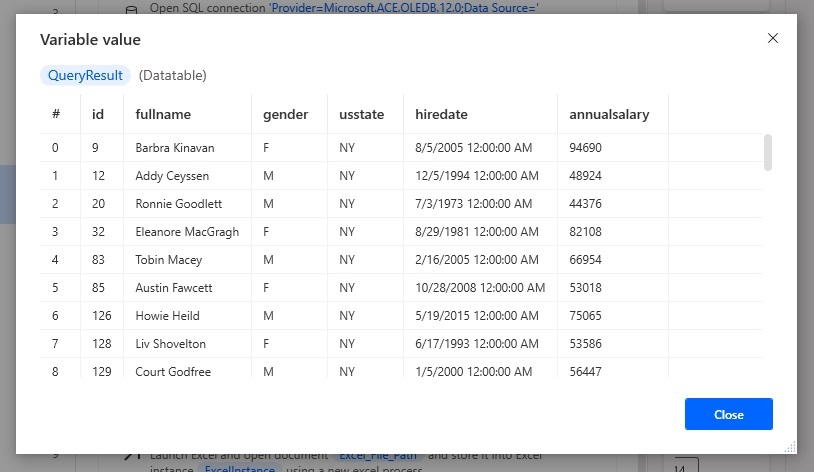

After the desktop flow is run we check the QueryResult variable and see it shows only employees from New York (NY).




Filter An Excel File For Values Greater Than A Specific Number

Next, let’s try to only get the employees whose annual salary is over $80,000.

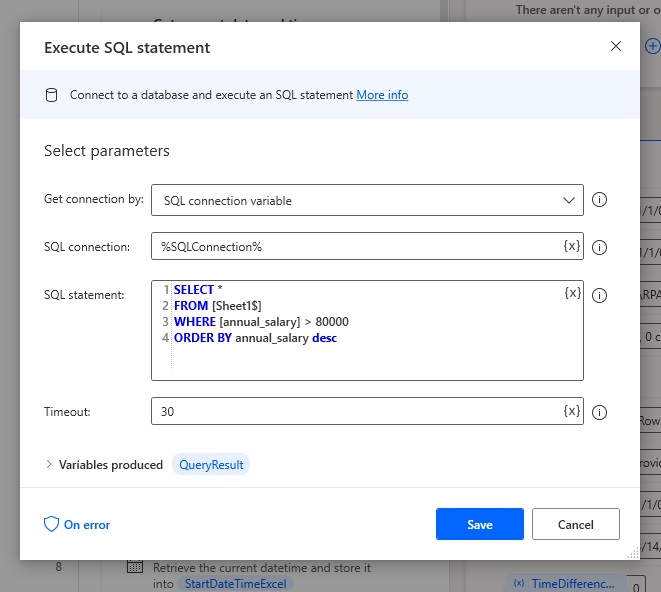

Write this query in the SQL statement field. Notice that we use the greater than symbol to compare the annual_salary field to a number. We also use the ORDER BY clause to sort the query results from the highest salary to the lowest salary.

SELECT *
FROM [Sheet1$]
WHERE [annual_salary] > 80000
ORDER BY annual_salary desc

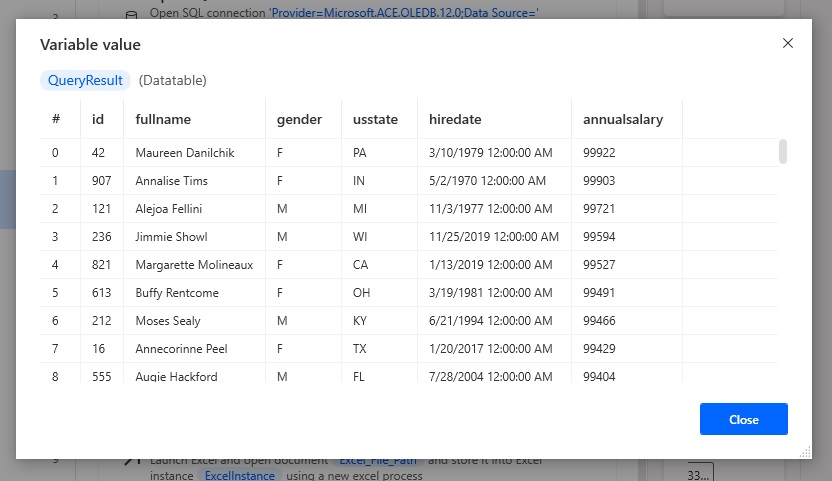

When we run the desktop flow our QueryResult variable looks like this.




Filter An Excel File For Values Between Two Dates

This example is one I have come back to many times. We can use a SQL query to return only the results between two dates. In this one I want to get only the employees hired during the year 2020.

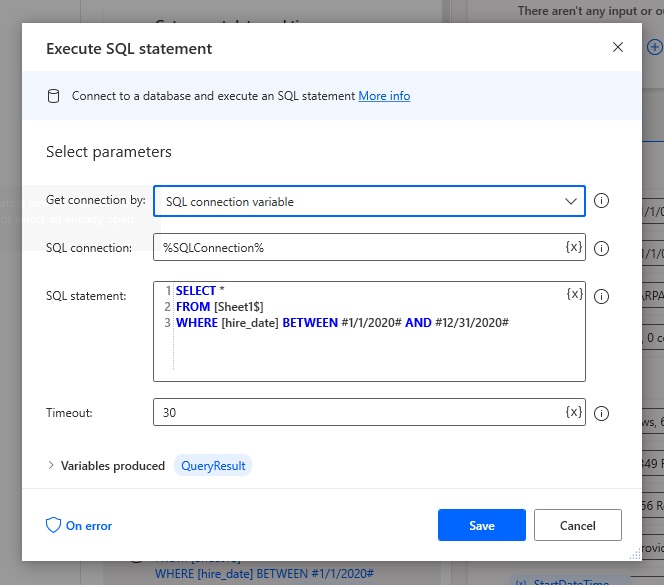

Write this code in the SQL statement field. We can use the BETWEEN operator to specific two dates for comparison. Notice how dates must be written within two # symbols.

SELECT *
FROM [Sheet1$]
WHERE [hire_date] BETWEEN #1/1/2020# AND #12/31/2020#

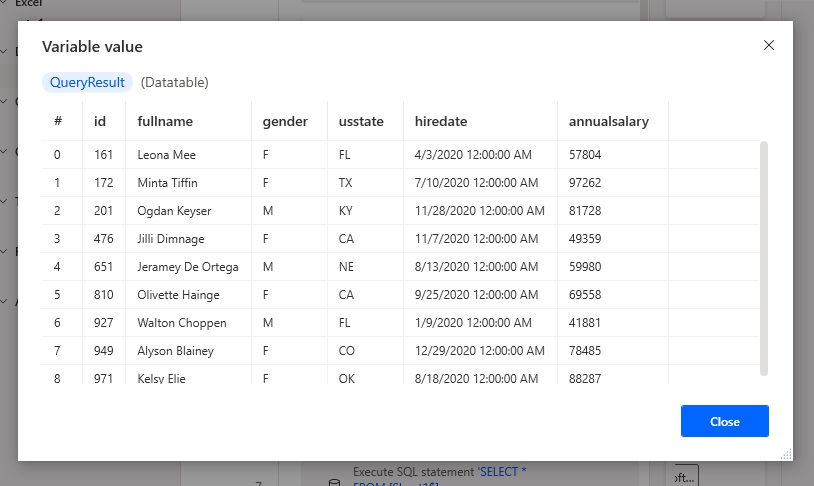

Once again, run the desktop flow and open the QueryResult variable and it will only show employees with hire dates in the year 2020.




Filter An Excel File To Return Top Rows

This final examples shows how to get only the top 3 rows in an Excel spreadsheet.

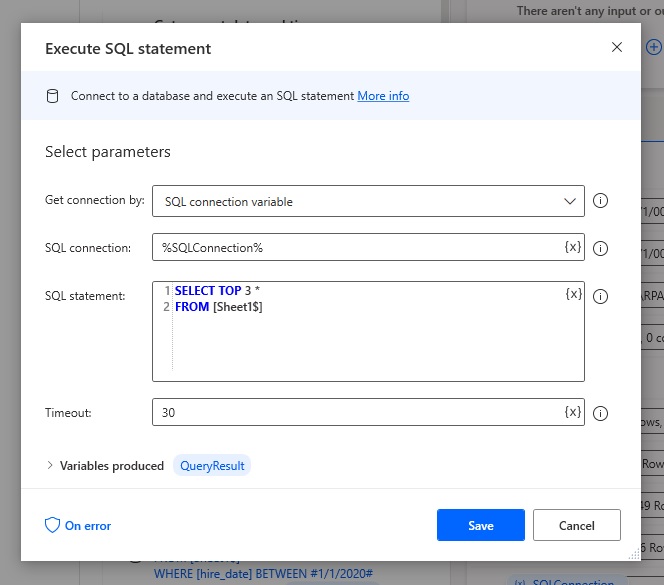

Write this code in the SQL statement field. The SELECT TOP clause can be changed to increase or decrease the number of rows returned.

SELECT TOP 3 *
FROM [Sheet1$]

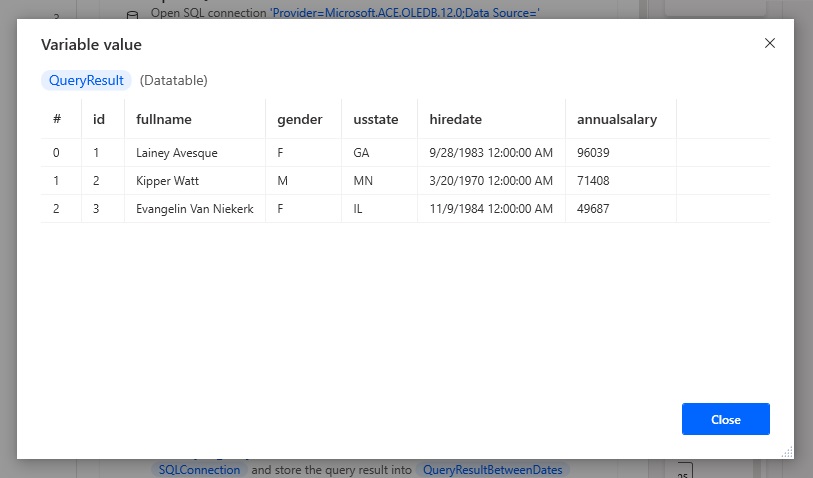

Run the desktop flow and check the QueryResult variable to confirm only 3 values are returned.





Questions?

If you have any questions about Power Automate Desktop: Read & Filter Excel With SQL Query please leave a message in the comments section below. You can post using your email address and are not required to create an account to join the discussion.

Matthew Devaney

Subscribe
Notify of
guest

35 Comments
Oldest
Newest
Inline Feedbacks
View all comments
Nuno Nougiera
2 years ago

This is great @Matthew, thank you!
Is there a similar solution for cloud flows using Excel files on Sharepoin or OneDrive?

Julien
Julien
2 years ago

Thank you for sharing this amazing post. I just started learning PDA and it’s a really a very nice tool.
Will it be possible to read a specific worksheet from the excel file dynamically?
Example: If you have 10 sheets within the excel file the process should find the sheet before the last one, copy the data found in this sheet, create a new worksheet, and paste the data.
Best regards,
Julien

Julien
Julien
2 years ago

Thank you so much for your reply. It worked perfectly.

Ed John
Ed John
2 years ago

Dear Matthew,
thank you for sharing.

Have you been able to insert or copy the data table produced from Excel into a SQL database?

I did both ways to connect to the xls:
▫️by SQL connection and
▫️by reading xls

The resulting data table looks good/correct.

However, when using it to insert or to create a table in a SQLite database, it looks like PAD cannot proceed showing an error message ([HY000] “not such table” followed by the data rows)

The connection to the SQLite works otherwise with other queries.
I tried 2 different ways to connect from PAD:
▫️by SQL connection and
▫️ by CMD line call passing the query as parameter

Maybe the way I refer to the data table is wrong?
▫️%xls_datatable_name%
▫️’%xls_datatable_name%’
▫️[%xls_datatable_name%]

Looking forward to your ideas …

Ed John
Ed John
2 years ago

Matthew,

I tried different queries/approaches:
▫️INSERT INTO ‘%target%’ SELECT * FROM ‘%excel_datatable%’
▫️or after dropping the target table:
CREATE TABLE ‘%target%’ AS SELECT * FROM ‘%excel_datatable%’

but I reckon it’s rather a wrong assumption of me how the query works:
as the excel data table is not part of the database the query will not find it.

I found this:
https://powerusers.microsoft.com/t5/Power-Automate-Desktop/Insert-data-table-into-sql-table/td-p/916417

Thanks again!

Ed John
Ed John
2 years ago

Thank you, Matthew!
No need to waste your time if you are busy with other topics.

l am pretty sure insert the data table row by row will work.

Instead, the CSV import of the complete data table might be more efficient depending on the numbers of rows.

The CMD call of sqlite3 passing the CSV file from PAD works quite well.
Cheers!

Oluwatobi Yusuf
Oluwatobi Yusuf
2 years ago

Thank you for this @Matthew. It is awesome.
Using this and cloud flow, which is faster?

Reni
Reni
2 years ago

Great explanation. I am searching for ways to execute a sql query in database and load the result into dynamically created excel file in the sharepoint. Excel file name should be todays date. How to achieve this?

MAuricio Serrano
MAuricio Serrano
2 years ago
I love this post, how would you use the SQL concat function in PAD?
MAuricio Serrano
MAuricio Serrano
2 years ago
Thanks it's just what I needed
Shital
Shital
2 years ago

How to achieve a query just for required column just say fullname, id ,gender rest not required

Mike
Mike
2 years ago

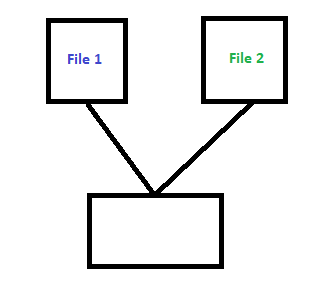

Hi Matt, I have one question. How can we join data from two separate files?
