Show Message If A Power Apps Gallery Is Empty

Show Message If A Power Apps Gallery Is Empty

What should happen when a Power Apps gallery contains no data? A good app designer will inform the user what has occurred and suggest what to do next. This message is called an empty state and it should be included in every gallery design you make. In this Power Apps article I will show you what to do when a Power Apps gallery is empty.

Table of Contents:
Introduction: The Repair Orders App
Setup The SharePoint List
Create A Screen Layout With Containers
Show An Empty State When The Power Apps Gallery Is Empty
Add A Gallery To Display SharePoint List Records
Insert Buttons To Control How The Gallery Is Filtered
Filter The Gallery By A Choice Type Field
Show An Empty State When A Filtered Power Apps Gallery Is Empty




Introduction: The Repair Orders App

Dispatchers at a maintenance company use the Repair Orders app to review the status of repair jobs: new, in-progress or completed. If the dispatcher selects a status which has no results the app shows an empty state with the message “No Results Found”.




Setup The SharePoint List

Create a SharePoint list called Repair Orders with the following columns:

  • FullName (single-line text)
  • StreetAddress (single-line text)
  • Status (choice) [New, In-Progress, Completed]


Do not load the SharePoint list with any data

FullNameStreetAddressStatus




Create A Screen Layout With Containers

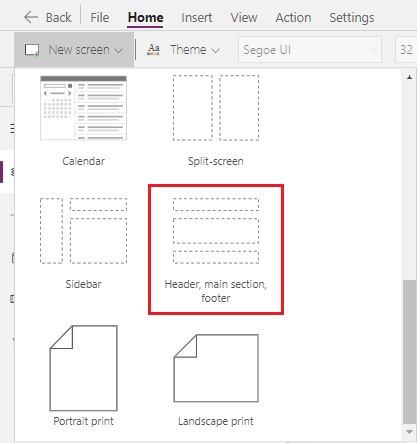

Open Power Apps Studio and create a new tablet app from blank then Create a new screen with the template: Header, main section, footer. This template includes three containers as shown in the image below. We can use those containers to make our job of building a screen layout easier.

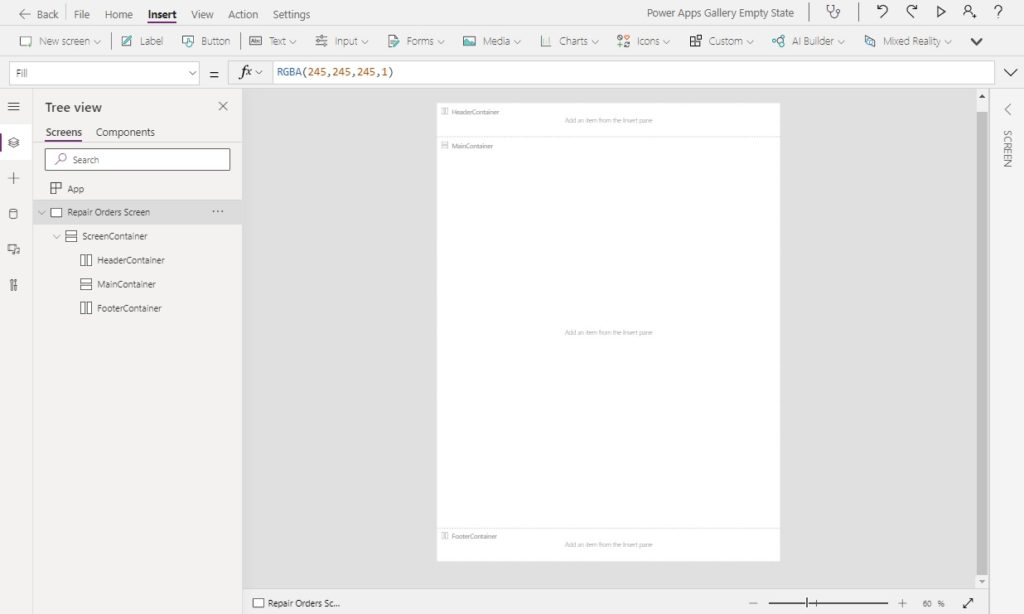

The new screen looks like this.



Add a label to the header container with the text “Repair Orders.”


Set the label style properties as follows.

Color: White
Fill: RGBA(0, 18, 107, 1)

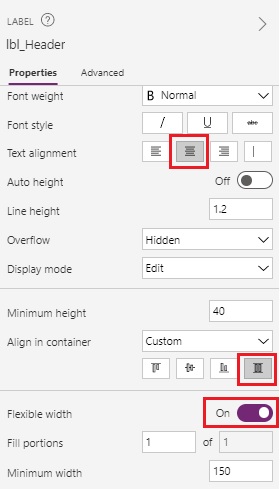

Then center the text and stretch the header label to fit the entire container.

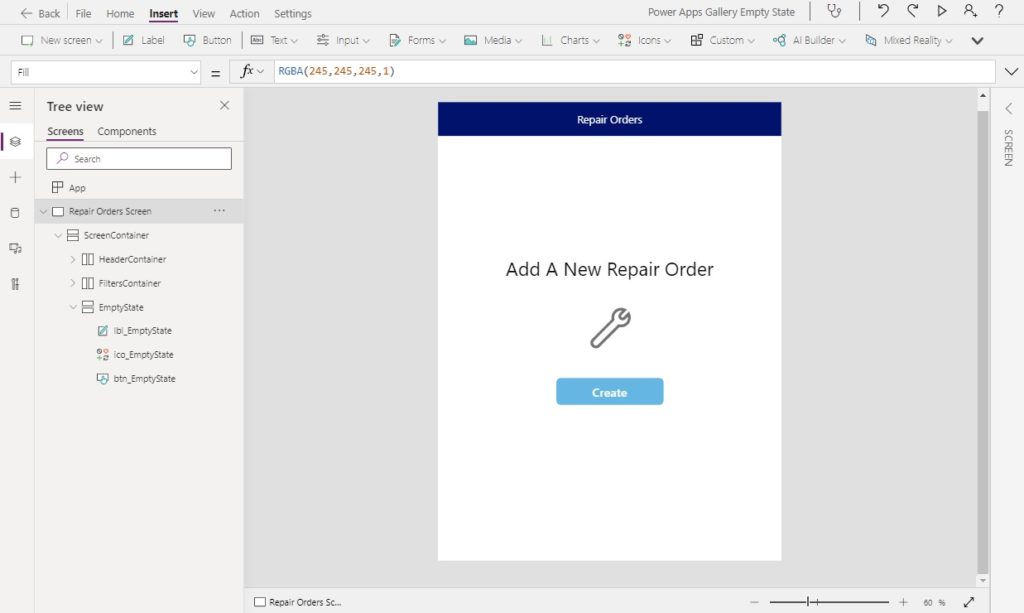

When the SharePoint list has no rows an empty state should be displayed on the screen. Rename the MainContainer to EmptyState and insert three new controls: a label, and icon and a button. We will design the empty state to ask the dispatcher to “Add A New Repair Order” as shown below.

(Note: the Footer Container has also been renamed to FiltersContainer, has a Visible property of false and was moved above the Empty State container).



Give the empty state label the following properties.

Color: Black
Font: Font.'Segoe UI'
Size: 32


The empty state icon should have these properties.

Color: RGBA(116, 116, 116, 1)
Height: 100
Icon: Icon.ToolsWrench
Width: 100


And use the properties below for the empty state button.

Color: White
Height: 60
Fill: RGBA(102, 182, 227, 1)
Width: 240



This empty state must only appear when the SharePoint list has no rows. Use this code in the Visible property of the Empty State container (make sure to add the datasource first).

IsEmpty('Repair Orders')

Now that the empty state has been designed we will add a gallery to the screen to show repair orders. Go to the Repair Orders SharePoint list and create these new records.

FullNameStreetAddressStatus
Amy Johnson6692 Michigan ParkwayNew
Terry Owen851 Carioca CrossingNew
Janice Smith6 Delladonna CenterClosed
Alice Lemon36708 Holy Cross ParkwayNew
Murray Redstone64 Lighthouse Bay StreetNew
Sarah Green334 Mendota PlazaNew
Breanne O’Toole99147 Northland LaneClosed
Jack Stewart93 Northview TrailNew
Robert Hart6 Susan JunctionClosed
Eddie Rogers55142 Killdeer LaneNew

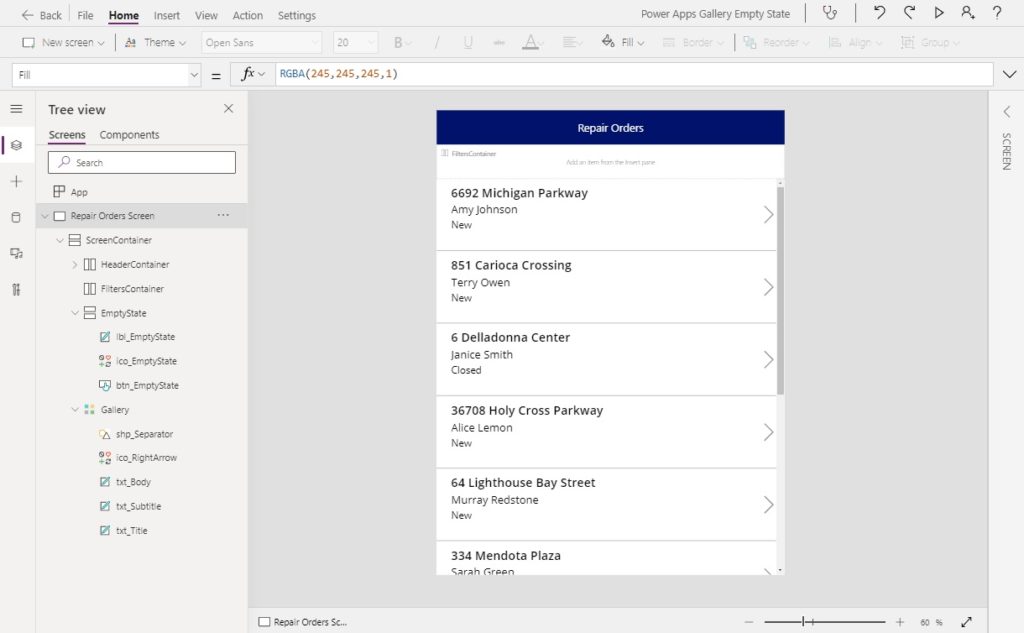

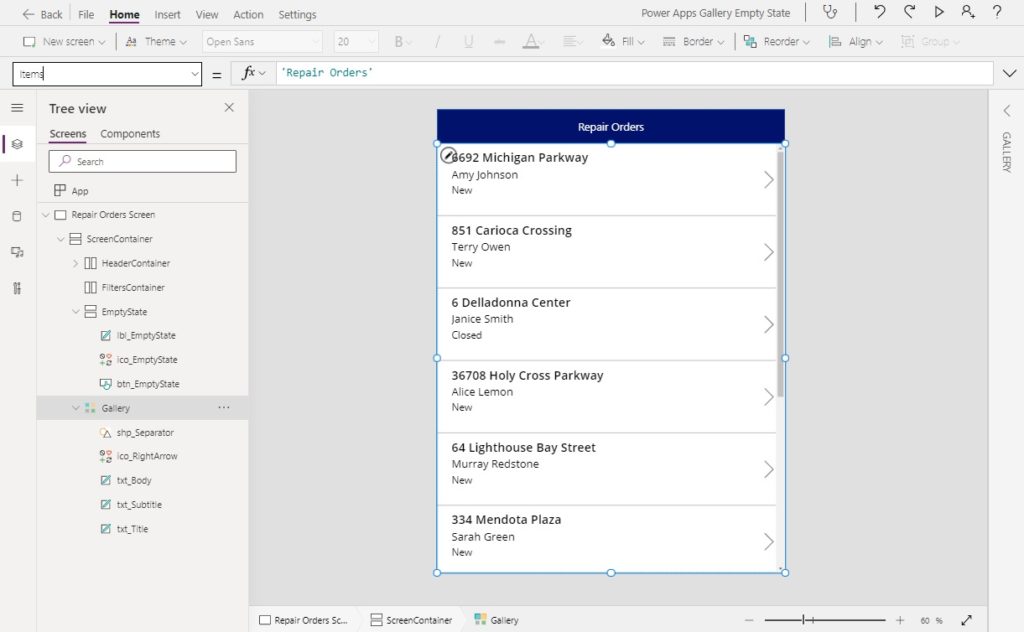

Then go back to the app, refresh the Repair Orders datasource and insert a new gallery into the ScreenContainer.



Use this code in the Items property of the gallery. Then insert labels into the gallery to display the StreetAddress, FullName and Status field values.

'Repair Orders'



We only want the gallery to appear when there rows in the SharePoint list. Use this code in the Visible property of the gallery.

!IsEmpty('Repair Orders')

Another situation where an empty state is required occurs when the dispatcher filters the gallery and no repair orders are found.



Use this code in the Visible property of the container named FiltersContainer to show the filter options only when the Repair Orders SharePoint list contains data.

!IsEmpty('Repair Orders')



Then insert 4 buttons into the container with text to match the choice value options – New, In-Progress, Closed as well as an All option at the front.

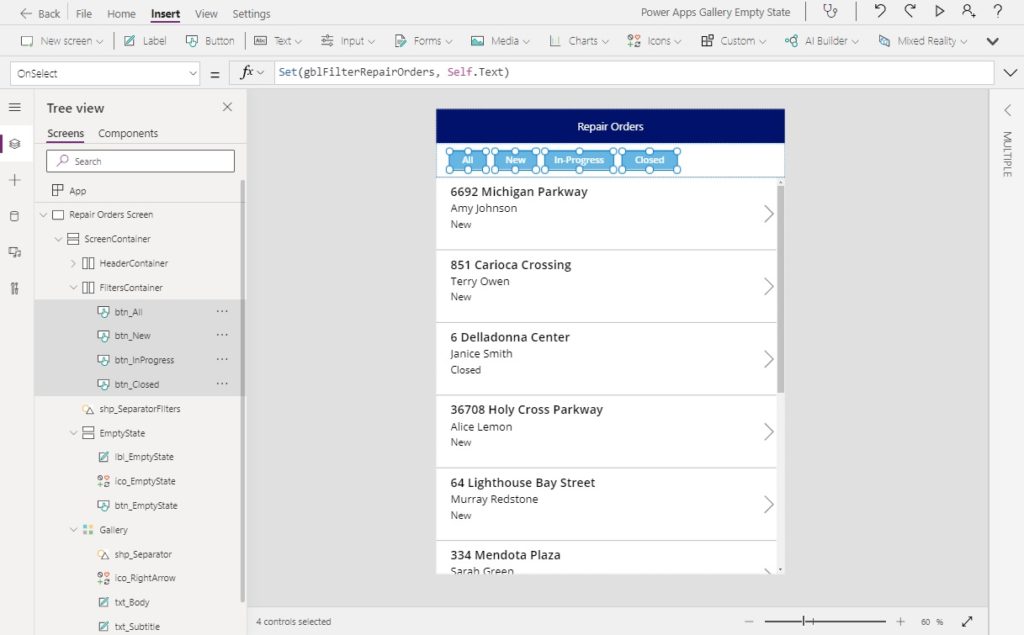

When the dispatcher clicks the filter button a variable will be set to store the selected option. Write this code in the OnSelect property of all 4 buttons.

Set(gblFilterRepairOrders, Self.Text)



Also, use this code in the Fill property of all 4 buttons. This will change the button fill color from light blue to dark blue when an option is selected.

If(
    gblFilterRepairOrders=Self.Text,
    RGBA(0, 18, 107, 1),
    RGBA(102, 182, 227, 1)
)

Pressing a filter button changes what the dispatcher sees in the gallery. If the New button is clicked, the gallery will only display new repair orders. The same goes for In-Progress and Closed. But if the dispatcher chooses All then every repair order will be shown

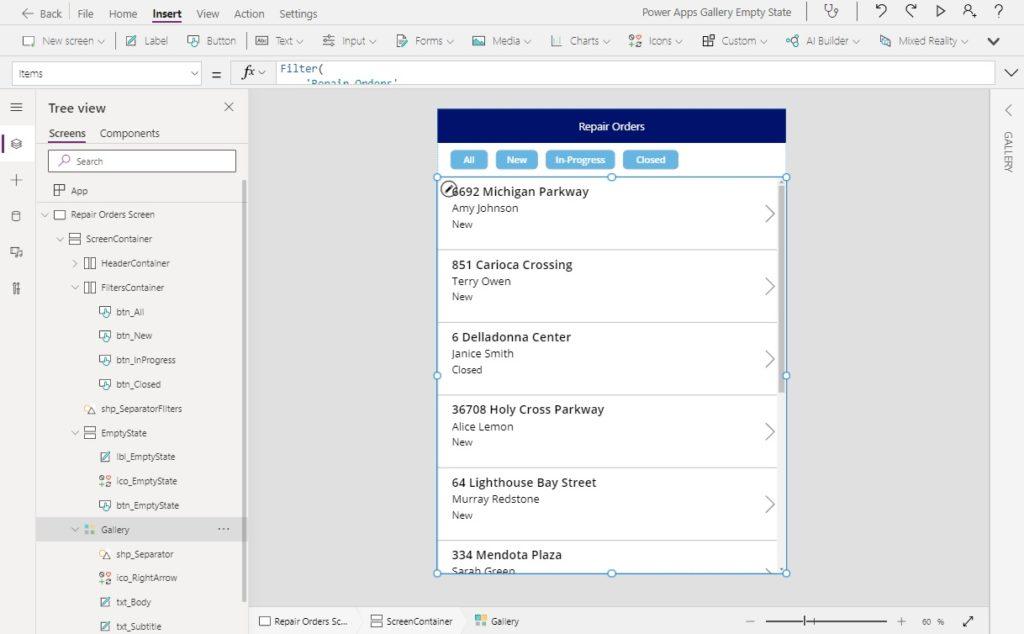

Update this code in the Items property of the gallery to respond to the filter button clicked.

Filter(
    'Repair Orders',
    Status.Value = gblFilterRepairOrders
    Or gblFilterRepairOrders = "All"
)



Then also refactor the code in the Visible property of the gallery to only appear when values exist for the chosen Status. Notice that the FILTER code is exactly the same as the gallery’s Items property.

!IsEmpty('Repair Orders')
And !IsEmpty(
        Filter(
       'Repair Orders',
        Status.Value = gblFilterRepairOrders
        Or gblFilterRepairOrders = "All"
    )
)



The gallery should behave as shown below.

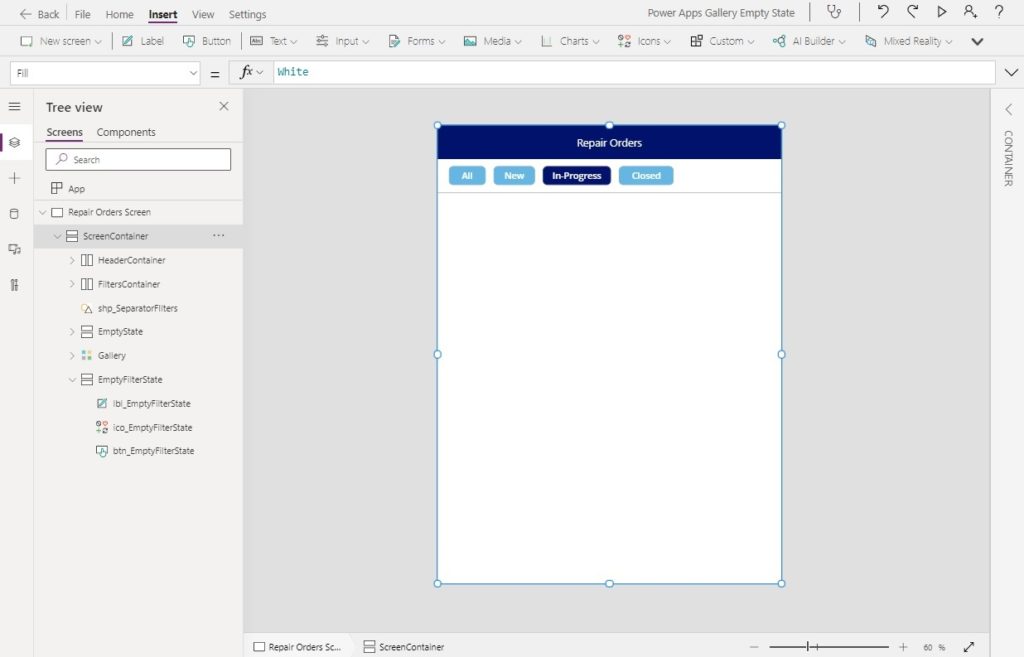

When testing the gallery notice that when In-Progress is selected there are no records and the screen appears blank. We will need to build an empty state for this scenario.

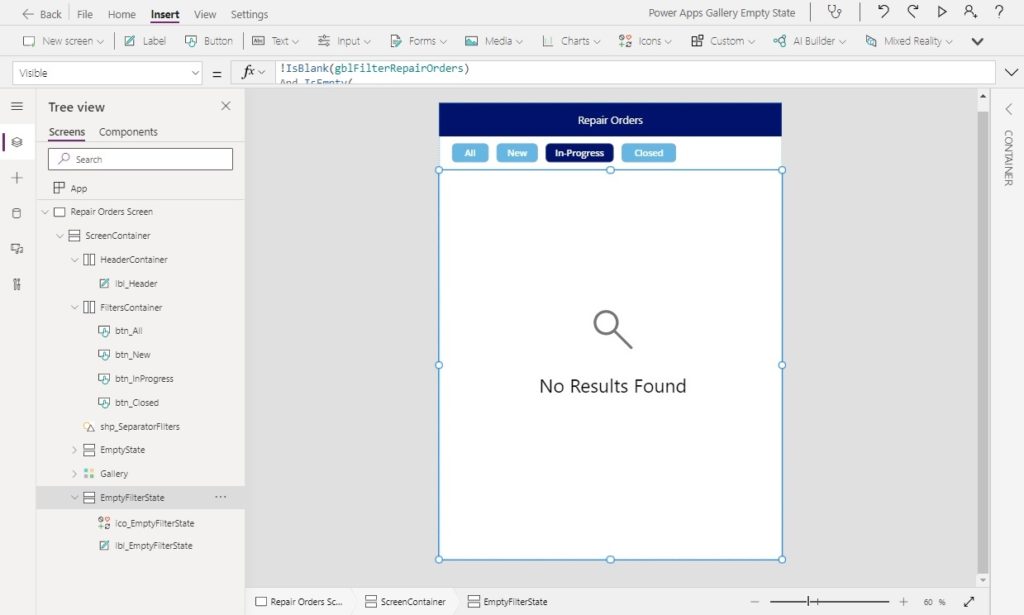

Make a copy of the Empty State container and rename it Empty Filter State. Re-write the text to “No Results Found” and change the icon to a magnifying glass.



Write this code in the Visible property of the container to ensure it only shows when a filter option has no data. Once again, note that the FILTER code is exactly the same as the gallery’s Items property.

!IsBlank(gblFilterRepairOrders)
And IsEmpty(
        Filter(
        'Repair Orders',
        Status.Value = gblFilterRepairOrders
        Or gblFilterRepairOrders = "All"
    )
)
