SharePoint Delegation Cheat Sheet For Power Apps

SharePoint Delegation Cheat Sheet For Power Apps

This SharePoint delegation cheat sheet is the quickest way to check which Power Apps functions support delegation. When you get a delegation warning like this: “the Filter part of this formula may not work correctly on large data sets”, change your code to only use functions found on this page. It will remove the delegation warning.

Table Of Contents:
• Power Apps Functions With Full Delegation Support In SharePointPower Apps Functions With Partial Delegation Support In SharePointKnown Workarounds For Non-Delegable Power Apps Functions In SharePointIsBlankSearchCreate Collections Over 2,000 RowsDouble Collection Size To 4,000 RowsForAll + Filter LoopColumn Indexing For Large Datasets Over 5,000 SharePoint List Items




Power Apps Functions With Full Delegation Support In SharePoint

When these functions are used to get data from SharePoint the full result is returned.

Filter
LookUp
Sort [1]
SortByColumns [1]
StartsWith
And, Or [2]
=, <, <=, <>, >, >= [3]


Notes
  1. Sort & SortByColumns function does not support delegation on complex column types: Choice, LookUp, Person, etc.
  2. Not operator does not support delegation
  3. SharePoint ID column only supports the = operator. Does not support <, <=, <>, >, >=




Power Apps Functions With Partial Delegation Support In SharePoint

When these functions are used to get data from SharePoint only the first 500 records are returned by default.

AddColumns
ClearCollect
Collect
DropColumns
RenameColumns
ShowColumns

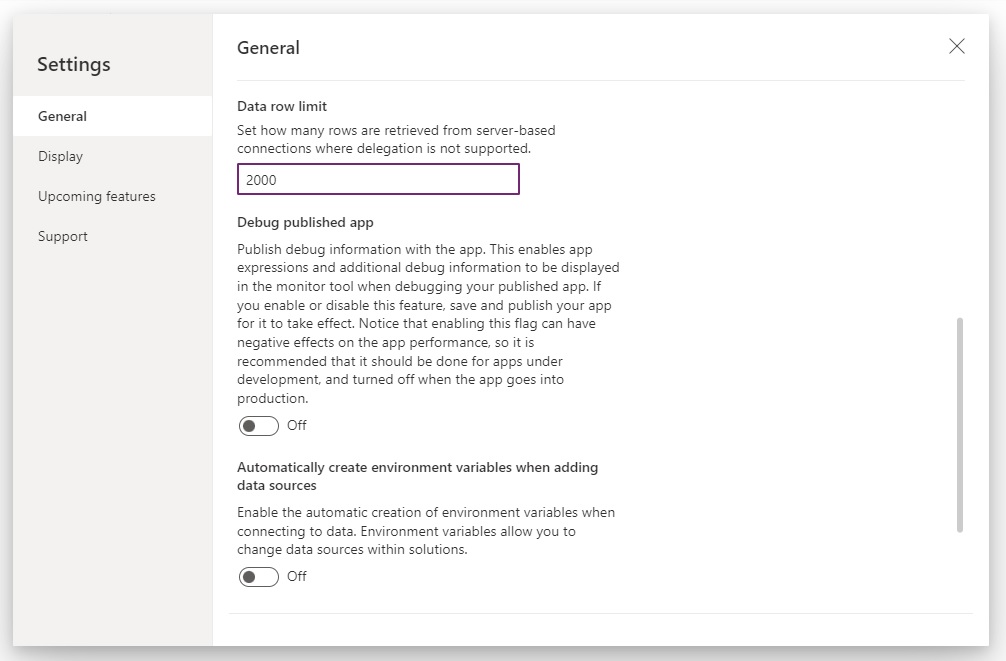

This can be increased to 2,000 records by changing the data row limit in the Power Apps advanced settings menu.




Known Workarounds For Non-Delegable Power Apps Functions In SharePoint

Delegation is not supported for these Power Apps functions in SharePoint.



IsBlank Function

The IsBlank function does not support delegation in SharePoint.

Filter('SharePoint List', IsBlank(Title))



We can use the Blank function to achieve the same result.

Filter('SharePoint List', Title=Blank())


Search Function

The Search function does not support delegation in SharePoint.

Search('SharePoint List', "Cat", "Title")



We can use the StartsWith function to get all results where the start of the word matches the search terms.

Filter('SharePoint List', StartsWith(Title, "Cat"))

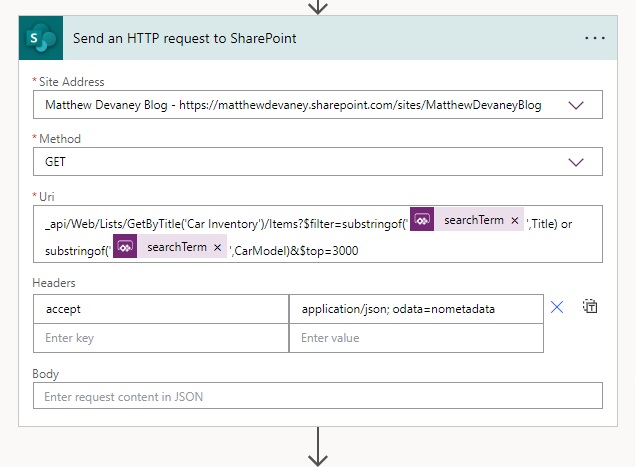

A full delegation workaround for the Search function is possible by performing the search in a Power Automate flow and sending the result back to Power Apps.




Create Collections Over 2,000 Rows

The ClearCollect function supports partial delegation in SharePoint. However, there are ways to create collections over 2,000 rows.

ClearCollect(colCollectionName, 'SharePoint List')



Double Collection Size To 4,000 Rows

We can use this Power Apps code to load up to 4,000 rows into a collection. First, we load the list data into 2 temporary collections. The 1st temporary list is sorted in ascending order and the 2nd temporary list is sorted in descending order. Then we merge both temporary collections into a single collection and remove the duplicates.

This technique only returns the full result when the filtered SharePoint list contains less than or equal to 4,000 items. For more information check out this article.

Concurrent(
    ClearCollect(
         colChunk1,
         Sort('SharePoint List', ID, Ascending)
     ),
     ClearCollect(
         colChunk2,
         Sort('SharePoint List', ID, Descending)
     )
);
ClearCollect(
    colYourCollectionName,
    colChunk1,
    Filter(colChunk2, Not(ID in colChunk1.ID))
);
Clear(colChunk1);
Clear(colChunk2);


ForAll + Filter Loop

The ForAll function can also be used to exceed the delegation limit. It can loop over a set of single column table of values an return the results into a collection. The only limitation is each iteration of the loop can only return up to 2,000 results. For a full example of the technique check out this article.

Clear(colYourCollectionName);
ForAll(
    ["New", "Submitted", "Approved"],
    Collect(
        colYourCollectionName,
        Filter('SharePoint List', SubmissionStatusColumn=Value)
    )
);




Column Indexing For Large Datasets Over 5,000 SharePoint List Items

When the number of items in a SharePoint list exceeds 5,000 items the following warning appears. The Power Apps Filter function and LookUp function will not evaluate any items past the 5,000th item in the list until column indexing is turned on. Each column used in the filter criteria must be indexed to return the full result.

“The number of items in this list exceeds the list view threshold, which is 5000 items. Tasks that cause excessive server load (such as those involving all list items) are currently prohibited.”

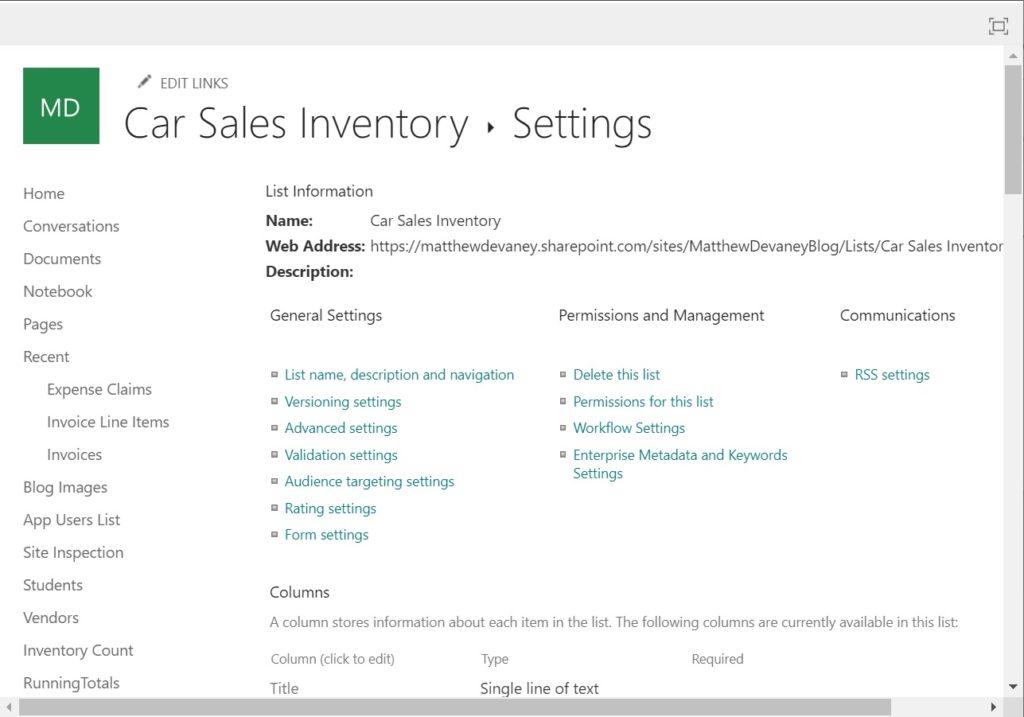

To enable column indexing open the SharePoint list settings…

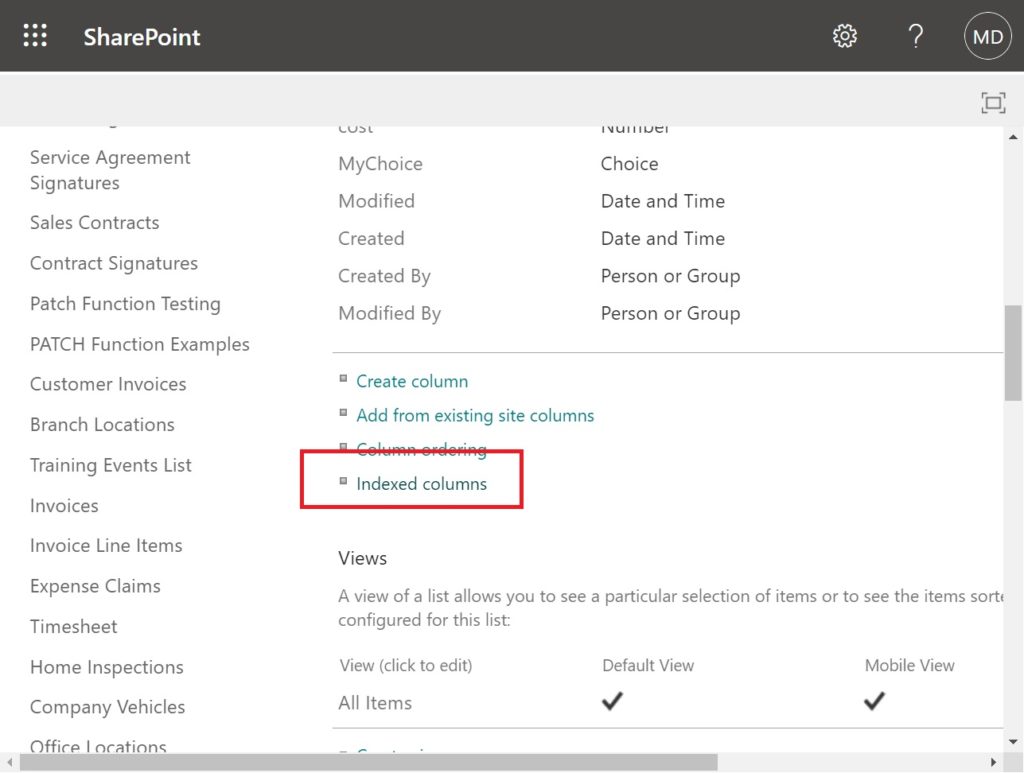

…and select Indexed columns.

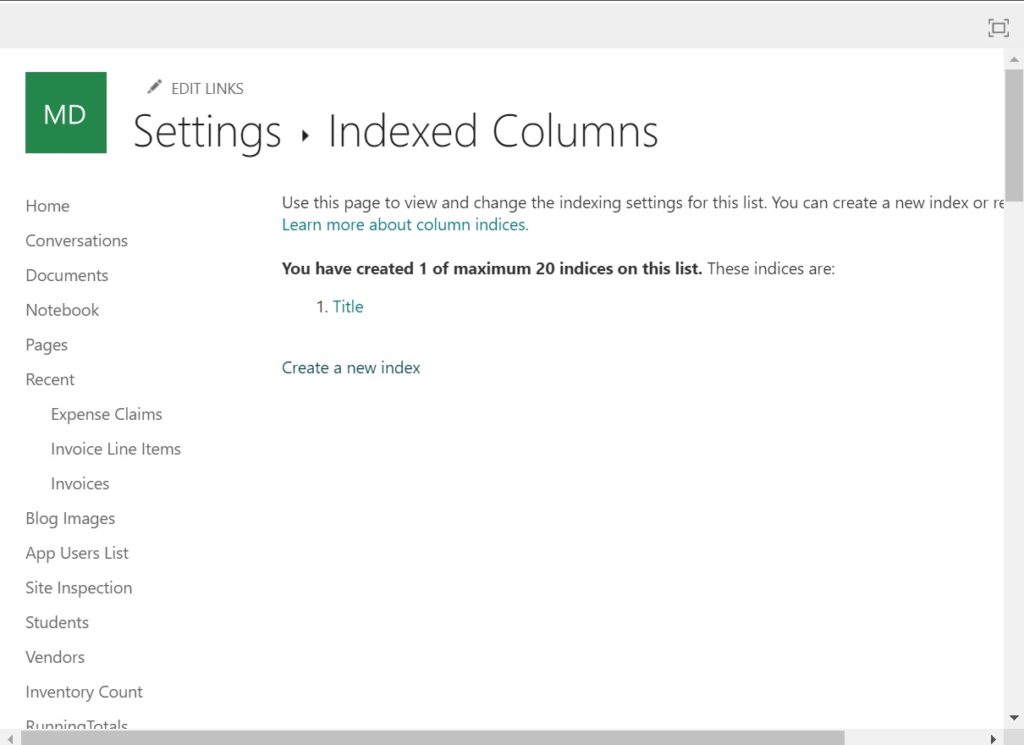

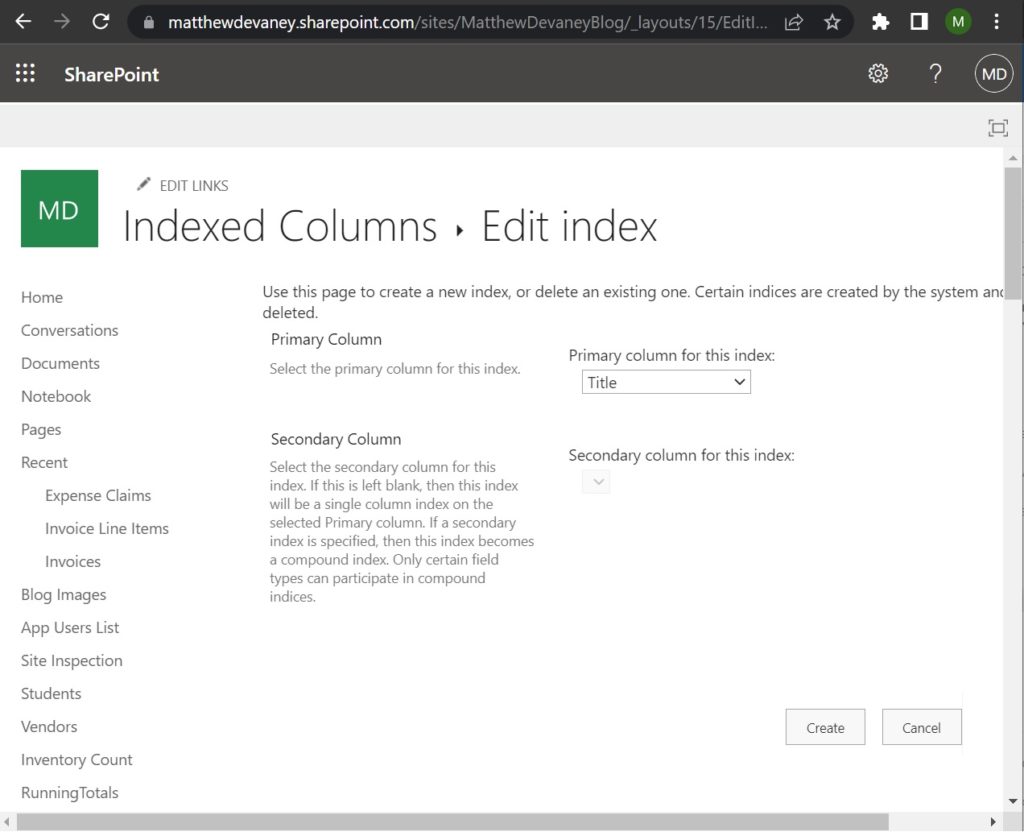

Choose the column to be indexed from the dropdown menu and click Create.



There can be up to 20 indexed columns on the same SharePoint list.





Questions About Delegation In SharePoint?

If you have any questions about Power Apps + SharePoint Delegation Cheat Sheet please leave a message in the comments section below. You can post using your email address and are not required to create an account to join the discussion.

Matthew Devaney

Subscribe
Notify of
guest

39 Comments
Oldest
Newest
Inline Feedbacks
View all comments
Manoj
Manoj
1 year ago

This is real helpful. Thanks for this article.

Amber Davies
Amber Davies
10 months ago

Yes please! Sounds awesome 👏🏼

Amber Davies
Amber Davies
10 months ago

Thank you 👏🏼

Johany
1 year ago

This is awesome, I have an issue now that I haven’t found a solution Matthew perhaps. you can give me a hand

I need to put on a combo box items something like “SharePoint List”.Title without delegation, my SP List has around 1000 items.

Any idea legend?

Johany
1 year ago

Hi Matthew, I am attaching the screenshot, no warning at all

Erick
Erick
1 year ago

Sensational Matthew, once again, congratulations on the content.

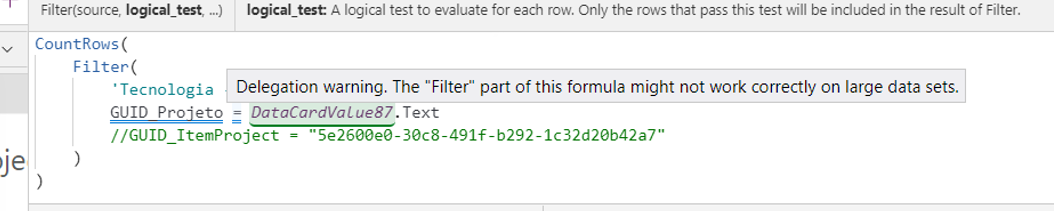

Now, look how interesting. I use the filter plus the = sign and still get the delegation alert. Should I ignore this alert or use a solution with power automate to get around it?

Thanks!

Erick
Erick
1 year ago

Multiline

Erick
Erick
1 year ago

Thanks Matthew for clearing that up, the fact that the data type is multiline makes perfect sense that it is not delegable. I really made the wrong decision when I started my application. It was a learning experience.

MARTIN BAPTISTE
1 year ago

Great article Matthew (as usual 😉),

Are you sure that = operator cannot be used on the ID column?

On the Microsoft documentation it is:

The SharePoint ID field of a table is a numeric field in Power Apps. However, SharePoint only supports the equal operation (‘=’) for delegation on an ID field.
SharePoint – Connectors | Microsoft Learn

Or did I misunderstand?

Have a nice day !

Baptiste ⚡

Jenny
Jenny
1 year ago

I used a flow to copy the ID column to a number-type column. That’s how I’ve been getting around delegation for the ID.

Jenny
Jenny
1 year ago

Thank you for this post! When you use a flow to pull in a large dataset, how do you deal with the time lag? I tried this and I found that the loading time seemed prohibitive. Thanks!

Reiner Knudsen
1 year ago

That is so very helpful (again). Yet, a SharePoint list with 4,000 entries sounds like the ultimate nightmare😀 Thank you for sharing.

Kurt Henderson
Kurt Henderson
1 year ago

Hi Mathew, this article is very helpful and I have it bookmarked. Thank you. One thing you state in the article is that Filter function supports the “=” sign when used with the ID column. I have a filter statement (below) which is using the ID field but is a lookup. The scenario is I have a parent table “Requests” and a child table “Request Notes” and the child table has a lookup column to the parent table called “Request Notes.Associated Request”. I’m using this in the items property of a gallery to filter the notes for a particular request. I’m sure this is a very common thing to do but I will always get a delegation warning on the following filter function. Any suggestions?

Filter(‘Request Notes’,’Associated Request ID’.Id=varCurrentRequest.ID)

Cake
Cake
1 year ago

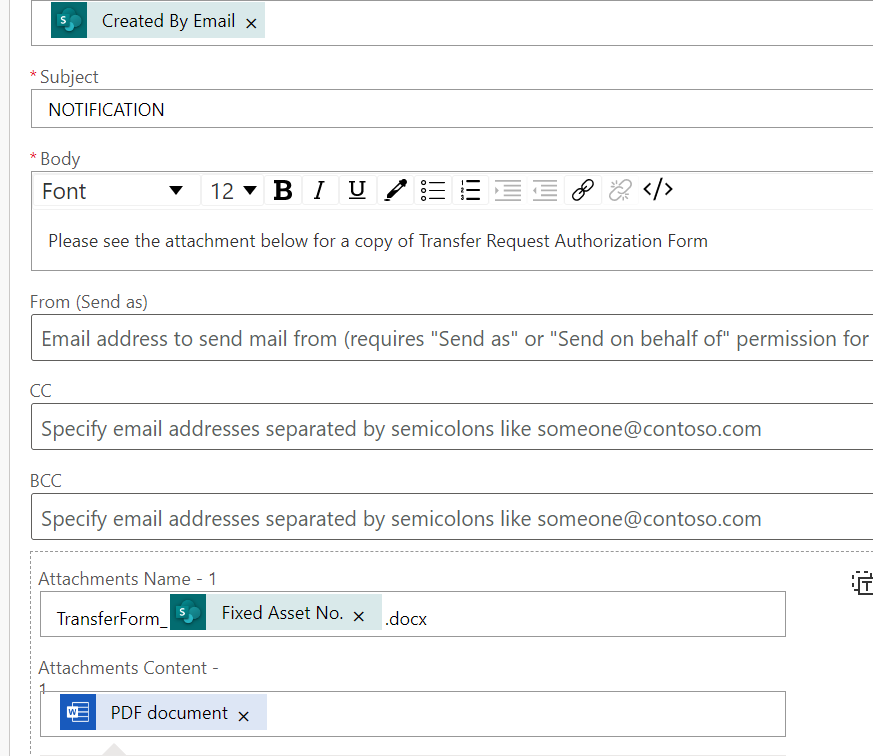

Hi, Matthew. Thanks for amazing post as usual. But i have one thing to ask you since I experienced this problem, why the file sent to my email is not converted to pdf and it keeps sending me emails with docx file? (I have followed your steps but maybe I missed something).
