Power Apps Radio Group – Modern Controls


Purpose

A radio group control allows users to select one option from a set of mutually exclusive options. Its purpose is to provide users with a list of options to choose from, ensuring that only one option can be selected at a time.


Properties

AccessibleLabel
Screen readers will voice this text when a user selects the control
ContentLanguage
Describes the language used to the audience (e.g. “en-US”)
DefaultSelectedItems
Initial values displayed in the control before the user interacts with it
DisplayMode
Selects the mode: Edit, View or Disabled. In Edit mode the user can input values. In View mode the user can only see the values and in Disabled mode the control is greyed-out.

Options:
= DisplayMode.Disabled
= DisplayMode.Edit
= DisplayMode.View
Height
Distance from the top of the control to the bottom
Items
Table containing values displayed inside the radio group

Example:

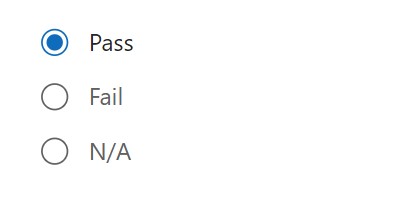

[“Pass”, “Fail”, “N/A”]
Label
Text to display beside the checkbox
OnChange
Actions that will be executed when the Value property of the checkbox changes
OnSelect
Actions that will be executed when the radio group is pressed.
Required
Unknown purpose.
Selected
Radio group record selected by the user
SelectedItems
Dropdown list item records selected by the user
Visible
Determines whether to show or hide the control
Width
Distance from the left side of the control to the right side
X
Distance from the left edge of the screen to the left side of the control
Y
Distance from the top edge of the screen to the top of the control




How To Setup The Power Apps Radio Group Control

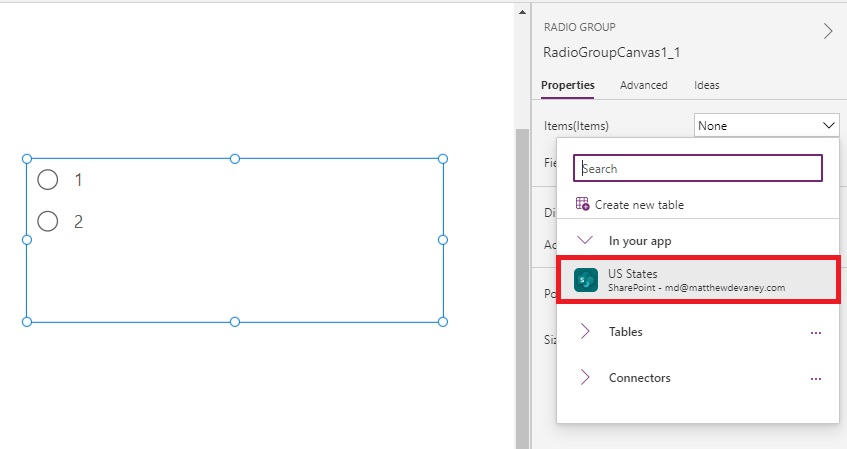

1. Select the radio group control in Power Apps studio. Choose the datasource from the Items menu.

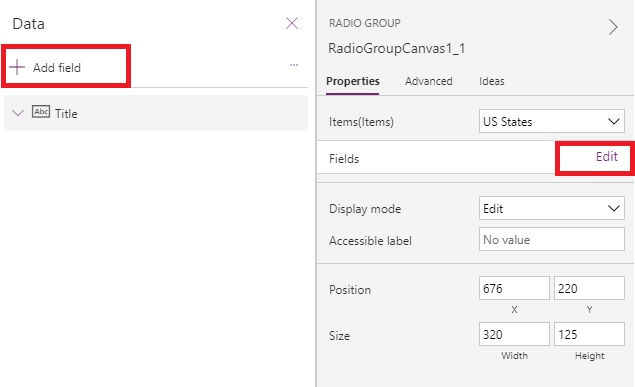

2. Edit the fields. Add at least one field to the dropdown. The first field will show in the dropdown items list.

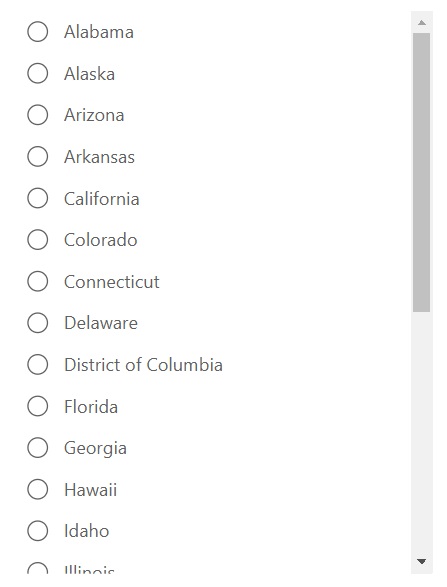

3. Click on the dropdown control to see the list of items.



4. Get the selected item’s Title field by using this code.

RadioGroupCanvas1.Selected.Title





Questions?

If you have any questions or feedback about Power Apps Radio Group – Modern Controls please leave a message in the comments section below. You can post using your email address and are not required to create an account to join the discussion.

Subscribe
Notify of
guest

18 Comments
Oldest
Newest
Inline Feedbacks
View all comments
Bryan
Bryan
1 year ago

Can you order the items Horizontal?

Peggy Nicholson
Peggy Nicholson
1 year ago

For the modern control, I do not see the layout property as an option. How can I do this for a modern radio button?

Nathan Shoptaw
Nathan Shoptaw
1 year ago

Trying to use it, but the items are coming in very small. Is there a way to make the text larger?

sara
1 year ago

How do I make this a mandatory field, where the user cannot move forward through the app unless an option is selected?

Matthew
Matthew
1 year ago

How do you set a default selected option on this control?

Anuj
Anuj
11 months ago
Reply to  Matthew

I have same question , anyone knows ?

Brad Allison
Brad Allison
11 months ago
Reply to  Matthew

I also and wondering how to set the default selected option. Mine has two items: “self” and “finance”. I would like “self” to be default, but it is not working

Arevik
Arevik
8 months ago
Reply to  Brad Allison

This worked for me:
In DefaultSelectedItems put {Value: ThisItem.ChoiceFieldName}

Bob Lamaster
Bob Lamaster
27 days ago
Reply to  Arevik

If you are trying to set the default value to what is already in Dataverse, but your gallery (that contains the radiogroup control) is based on a filtered collection of records from Dataverse (rather than based on the Dataverse table directly), things get a little bit more complicated, but it’s based on Arevik’s answer:

[{Value: LookUp(‘Name of Dataverse table‘,’Column name you can match on‘ = ThisItem.’Same column name‘,ChoiceFieldName)}]

Essentially, this is the same thing, but since you are using a collection, you have to do a lookup to Dataverse to get the value of the choice column for the same record.

Last edited 27 days ago by Bob Lamaster
Koen
Koen
7 months ago
Reply to  Matthew

I have used following code in the “defaultselecteditems”:

Table({Value: If(IsBlank(ThisItem.'mychoicecolumn'), 'mychoicecolumn'.'mydefaultoption', ThisItem.'mychoicecolumn') })
Barry
Barry
1 year ago

Am I right in saying we can’t change the order of items in the new Radio Group – they are always sorted alphabetically on the first field? For example, show the radio options from a SharePoint list that displays “Title” column but sorts on another numeric “SortOrder” column. Seems like a bug.

Last edited 1 year ago by Barry
Aamir D.
Aamir D.
10 months ago

Hi, How can we set the height automatically based on the number of choices? I know of a way where we count the number of choices and then multiply by an approximate line-height… e.g. CountRows(Split(ThisItem.Choices,”;”)) * 35
The issue arises when my choice text has multiple lines…

Amanda Kirkhart
Amanda Kirkhart
7 months ago

I am using the modern radio group with a button to patch data to a SPO list. The radio controls are within the gallery, while the button is on the screen. Right now when I patch the data collected, it resets the previous selection and sometimes clears out patched data in the SPO list. I know I need to use the DefaultSelectedItems property, but am unsure of the code. Is this do-able?

Gopal
Gopal
6 months ago

I have a gallery control and I have a requirement to show a radio button which will show one of the field in the collection which is binded to the gallery

Deborrah A Agpalasin
Deborrah A Agpalasin
26 days ago

Is it possible to have the options displaying for a radio button dynamically changing? For example, based on a condition, all options will display, or only option 1 and 2 (out of 3) will display?

Katherine
Katherine
4 days ago

Is there a way to adjust spacing between the lines of an item? This is not the same as ‘Line height’. Line height produces the same space between each line, even wrapped lines. Akin to paragraph spacing, if one of the items is longer it may wrap and begin to look like two items, when it’s really one that has wrapped…see picture. I would like that spacing to be controllable.
